Shenzhen Tongxinke Electronic Technology Co., Ltd.

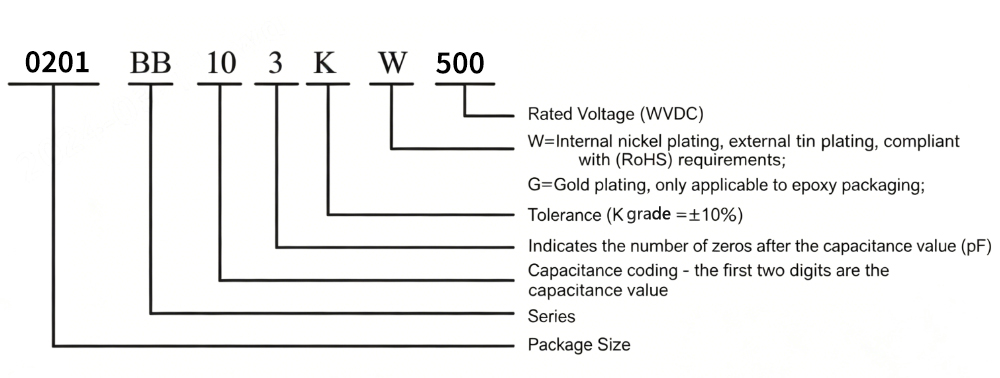

ຮຸ່ນ No: 0402BB(.040"x.020")0402BB104KW500
The file is encrypted. Please fill in the following information to continue accessing it

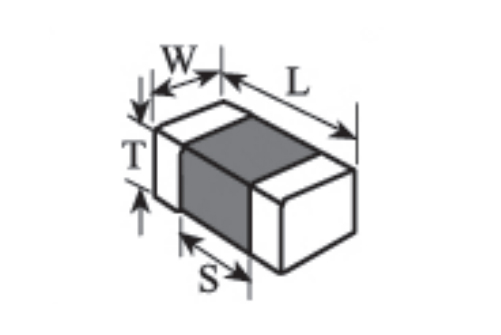

| Type / Outline | Capacitor Dimensions | |||
|---|---|---|---|---|
 |
Length (L) | Width (W) | Thickness (T) | (S) |
| .040 ± .004
|
.020 ± .004
|
.024 (0.61)
|
.016 (0.406)
|
|
| Item | Specification |
|---|---|
| Capacitance | 10 nF |
| Insulation Resistance (IR) | 10¹¹ Ω min, at 25°C with rated voltage applied. |
| Rated Voltage | 50 WVDC |
| Dielectric Withstanding Voltage (DWV) | Apply 250% of rated voltage for 5 seconds. |
| Operating Temperature Range | -55°C ~ +125°C |
| Temperature Coefficient of Capacitance (TCC) | ±15% |
| Closest Substrate | Dielectric Constant | Substrate Thickness (Mils) | Trace Thickness (Mils) | Linewidth for 50Ω Z₀@10GHz (Mils) |
|---|---|---|---|---|
| Rogers RO4350B | 3.9 | 6.6 | 0.71 | 13.1 |
| Rogers RO4350B | 3.9 | 10 | — | 20.1 |
| Rogers RO4350B | 3.9 | 4 | — | 7.7 |
| Rogers RO3006B | 6.5 | 10 | 0.71 | 13.4 |
| Rogers RO3006B | 6.5 | 13.5 | — | 18.3 |
| Rogers RO3006B | 6.5 | 7 | — | 9.2 |
| Alumina | 9.6 | 13 | 0.1 | 12.8 |
| Alumina | 9.6 | 20 | — | 19.8 |
| Alumina | 9.6 | 5 | — | 4.8 |
