Shenzhen Tongxinke Electronic Technology Co., Ltd.

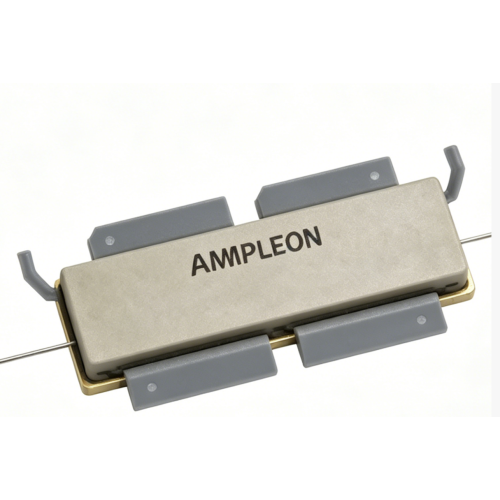

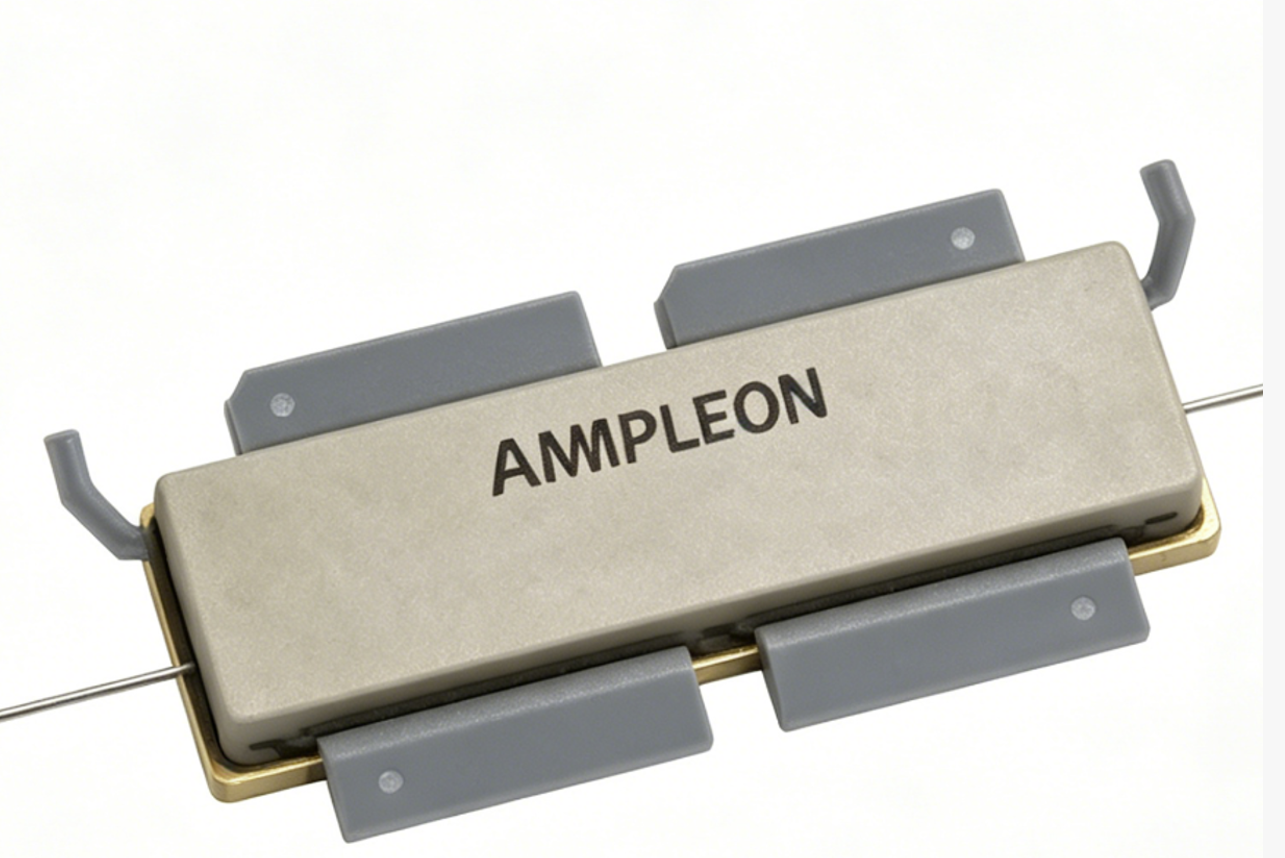

ຮຸ່ນ No: BLC10G27XS-551AVT BLC10G27XS-551AVTZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 2620 MHz ~ 2690 MHz (Precisely covers 5G NR n78 core band) |
| Peak Output Power | 550 W Continuous Wave (CW), in Asymmetric Doherty Configuration |
| Typical Power Gain | 13.5 dB (Doherty operation mode) |
| Typical Drain Efficiency | 66.7% (Industry-leading level, significantly reducing base station energy consumption) |
| Supply Voltage | 28V nominal, Maximum Rated Voltage 65V |
| Quiescent Current | 750 mA (main path), 0 mA (peaking path) typical |
| Package Type | SOT1258-4 (OMP-780-4F-1), 4-pin RF power package with high-efficiency thermal pad |
| Thermal Resistance | Junction-to-case thermal resistance as low as 0.22 K/W, excellent heat dissipation performance |
| Special Features | Internally matched to 50Ω input/output, lower output capacitance for improved Doherty performance, integrated ESD protection |
| Operating Temperature | -40°C ~ +125°C (Maximum Junction Temperature 175°C) |
