ESR ຕ່ຳສຸດ, RF/Microwave Ceramic Dielectric Capacitor
ESR ຕ່ຳສຸດ, RF/Microwave Ceramic Dielectric Capacitor
ESR ຕ່ຳສຸດ, RF/Microwave Ceramic Dielectric Capacitor

ESR ຕ່ຳສຸດ, RF/Microwave Ceramic Dielectric Capacitor

Get Latest Price
Min ຄໍາສັ່ງ:1
ຄຸນລັກສະນະຂອງ...

ຮຸ່ນ NoDLC75N(0201)

ການຫຸ້ມຫໍ່ແລະ...

The file is encrypted. Please fill in the following information to continue accessing it

ລາຍະລະອຽດສິນຄ...
DLC75N ເປັນ Ultra Low ESR High Q RF MLCC
DLC75N Ultra-low ESR, RF/Microwave Ceramic Dielectric Capacitor
DLC75N(0201)
ຕາຕະລາງຄວາມອາດສາມາດ DLC75N
Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage
0.2 0R2 A, B, C, D. 25V Code 250 1.7 1R7 A, B, C, D. 25V Code 250 6.2 6R2 B, C, 25V
Code
250
0.3 0R3 1.8 1R8 6.8 6R8
0.4 0R4 1.9 1R9 7.5 7R5
0.5 0R5 2.0 2R0 8.2 8R2
0.6 0R6 2.1 2R1 9.1 9R1
0.7 0R7 2.2 2R2 10 100 F, G, J.
0.8 0R8 2.4 2R4 11 110
0.9 0R9 2.7 2R7 12 120
1.0 1R0 3.0 3R0 13 130
1.1 1R1 3.3 3R3 15 150
1.2 1R2 3.6 3R6 16 160
1.3 1R3 3.9 3R9 18 180
1.4 1R4 4.3 4R3
1.5 1R5 4.7 4R7
1.6 1R6 5.1 5R1
    5.6 5R6

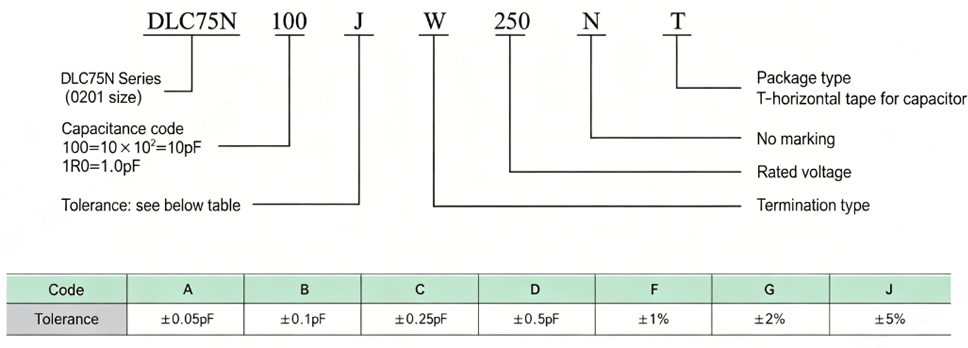

ຈໍານວນອົງປະກອບ
Capacitor

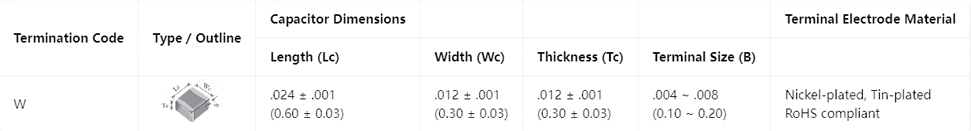

DLC75N ປະເພດແລະຂະຫນາດຂອງຝາປິດທ້າຍ
Ceramic dielectric capacitor

ປະສິດທິພາບໄຟຟ້າ
Item Specification
Quality Factor (Q) ≥ 2000, measured at 1 ± 0.1 MHz, 1 ± 0.2 Vrms.
Insulation Resistance (IR) ≥ 10⁵ MΩ, at 25°C with rated voltage applied.
Rated Voltage (WVDC) See capacitance table.
Dielectric Withstanding Voltage (DWV) Apply 250% of rated voltage for 5 seconds.
Operating Temperature Range -55°C ~ +150°C

(Contact Dalicap Technology Co., Ltd. if higher temperature is required.)
Temperature Coefficient (TC) 0 ± 30 ppm/°C
Capacitance Drift ±0.2% or ±0.05 pF, whichever is greater.
Piezoelectric Effect None

ການທົດລອງດ້ານສິ່ງແວດລ້ອມ
Item Specification Method
Resistance to Soldering Heat Appearance: No mechanical damage.

Capacitance change: -1.0% ~ +2.0% or 0.5pF, whichever is greater.

Q factor: Greater than 1000.

Insulation resistance: Not less than the initial required value.
Preheat at 150°C ~ 180°C for 1 minute, immerse in solder at 260±5°C for 10±1 seconds.

Test after cooling for 24±2 hours.
Thermal Shock Appearance: No mechanical damage.

Capacitance change: Not exceeding 0.5% or 0.5pF, whichever is greater.

Q factor: Greater than 2000.

Insulation resistance: Not less than 30% of the initial required value.

DWV: Complies with the initial required value.
Test in accordance with MIL-STD-202, Method 107, Condition A.

Expose at extreme temperatures for 15 minutes.

Transition time from minimum to maximum operating temperature shall not exceed 5 minutes, for 5 cycles.
Moisture Resistance Appearance: No mechanical damage.

Capacitance change: Not exceeding 0.5% or 0.5pF, whichever is greater.

Q factor: Greater than 300.

Insulation resistance: Not less than 30% of the initial required value.

DWV: Complies with the initial required value.
Test in accordance with MIL-STD-202, Method 106.
Steady State Humidity Appearance: No mechanical damage.

Capacitance change: Not exceeding 0.3% or 0.3pF, whichever is greater.

Q factor: Greater than 300.

Insulation resistance: Complies with the initial required value.
Test in accordance with MIL-STD-202, Method 103, Condition A.

Apply 1.5V DC voltage under conditions of 85°C temperature and 85% humidity for 240 hours continuously.
Life Appearance: No mechanical damage.

Capacitance change: Not exceeding 2.0% or 0.5pF, whichever is greater.

Q factor: Greater than 500.

Insulation resistance: Not less than 30% of the initial required value.
Test in accordance with MIL-STD-202, Method 108.

Apply 2 times the rated voltage at the extreme temperature for 2000 hours.

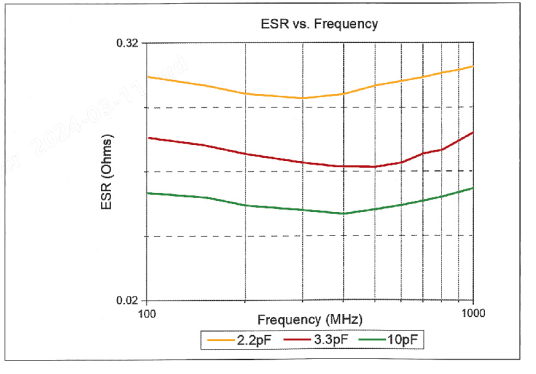

ເສັ້ນໂຄ້ງປະສິດທິພາບ DLC75N
1

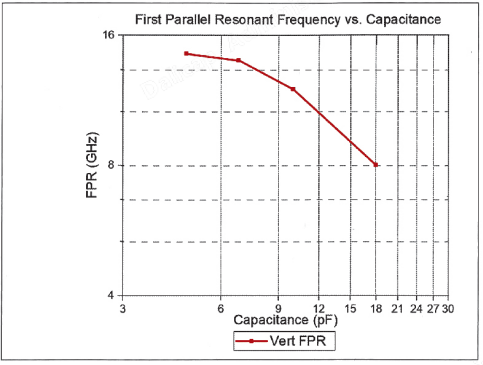

ໃນເສັ້ນໂຄ້ງ S21 ຂອງຕົວເກັບປະຈຸ, ມີຈຸດ resonance ຂະຫນານຫຼາຍ (ຈຸດ attenuation ຮູບ V). ຄວາມຖີ່ຂອງ resonance ຂະຫນານທໍາອິດ FPR ແມ່ນຄວາມຖີ່ຂອງຈຸດ resonance ຂະຫນານຕ່ໍາສຸດ. ມັນບໍ່ໄດ້ຮັບຜົນກະທົບຈາກຄວາມຫນາຂອງ substrate ແລະຄວາມຄົງທີ່ຂອງ dielectric, ແຕ່ວ່າມັນໄດ້ຮັບອິດທິພົນຈາກທິດທາງການຕິດຕັ້ງຂອງ capacitor. ທິດທາງແນວນອນຫມາຍຄວາມວ່າແຜ່ນ electrode ພາຍໃນຂອງ capacitor ແມ່ນຂະຫນານກັບ substrate.

23

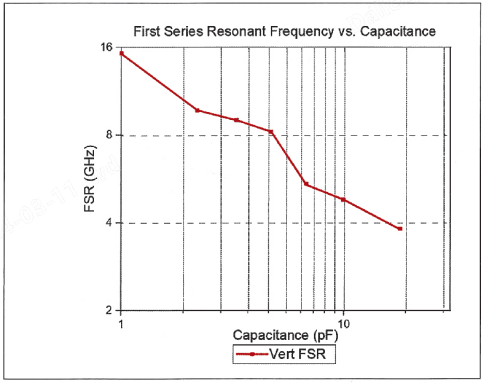

ໃນເສັ້ນໂຄ້ງ impedance [Zin] ຂອງຕົວເກັບປະຈຸ, ມີຈຸດ resonant ຫຼາຍຊຸດ (ຈຸດ attenuation ຮູບ V). ຄວາມຖີ່ resonant ຊຸດທໍາອິດ FSR ແມ່ນຄວາມຖີ່ຂອງຈຸດ resonant ຊຸດຕ່ໍາສຸດ. ໃນຈຸດນີ້, ພາກສ່ວນຈິນຕະນາການຂອງ impedance ວັດສະດຸປ້ອນ Im[Zin] ແມ່ນສູນ (Im[Zin] = 0). ຂ້າງລຸ່ມນີ້ FSR, ສ່ວນທີ່ແທ້ຈິງ Re[Zin] ແລະສ່ວນຈິນຕະນາການ Im[Zin] ຂອງ impedance ການປ້ອນຂໍ້ມູນບໍ່ປ່ຽນແປງຕາມເສັ້ນດ້ວຍຄວາມຖີ່. ຂະຫນາດຂອງ FSR ແມ່ນກ່ຽວຂ້ອງກັບປັດໃຈດັ່ງຕໍ່ໄປນີ້: ໂຄງສ້າງຂອງ electrodes ພາຍໃນຂອງ capacitor, ອຸປະກອນການ substrate, ຄວາມຫນາຂອງ substrate, substrate dielectric ຄົງທີ່, ທິດທາງການຕິດຕັ້ງຂອງ capacitor ສຸດ substrate ໄດ້, ແລະຂະຫນາດຂອງ pads substrate ໄດ້.
ຄໍານິຍາມແລະເງື່ອນໄຂການວັດແທກ:
ຄໍານິຍາມ: capacitor ແມ່ນເຊື່ອມຕໍ່ເປັນຊຸດກັບສາຍ microstrip. ນັ້ນແມ່ນ, ຕົວເກັບປະຈຸແມ່ນເຊື່ອມຕໍ່ລະຫວ່າງສອງປາຍຂອງສາຍ microstrip 50-ohm ທີ່ມີຊ່ອງຫວ່າງ. ເງື່ອນໄຂການວັດແທກ: Ro3006 Rogers substrate ທີ່ມີ dielectric ຄົງທີ່ຂອງ 6.15, ຄວາມຫນາຂອງ substrate ແມ່ນຕິດຕັ້ງຕາມແນວນອນຢູ່ທີ່ 10 mils, ຊ່ອງຫວ່າງ microstrip ແມ່ນ 6 mils, ແລະຄວາມກວ້າງຂອງ microstrip ແມ່ນ 14.1 mils. ຍົນອ້າງອີງແມ່ນຢູ່ຂອບຂອງຕົວຢ່າງ. ຂໍ້ມູນທັງຫມົດແມ່ນມາຈາກຕົວແບບໄຟຟ້າທີ່ຜະລິດໂດຍ Modelithics Inc., ເຊິ່ງແມ່ນອີງໃສ່ຂໍ້ມູນການວັດແທກຈໍານວນຫຼວງຫຼາຍໃນ substrates ທີ່ແຕກຕ່າງກັນ.
