ຮຸ່ນ No: DLC75R(0708)
The file is encrypted. Please fill in the following information to continue accessing it

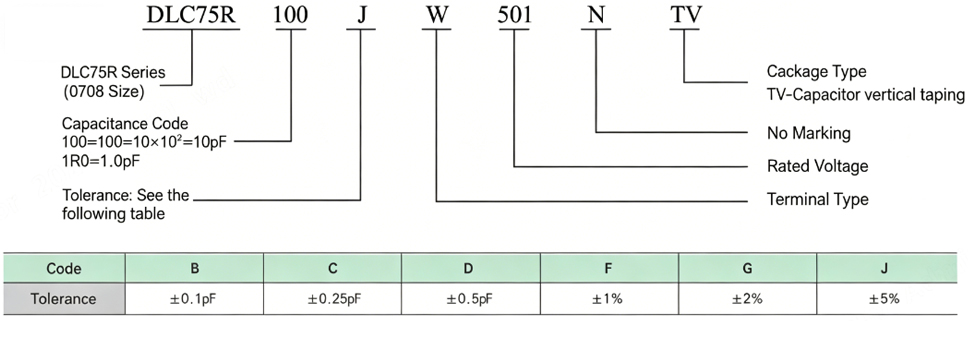

| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.0 | 1R0 | B, C, D. | 500V / Code 501 | 3.9 | 3R9 | B, C, D. | 500V / Code 501 | 22 | 220 | G, J. | 500V / Code 501 |
| 1.1 | 1R1 | 4.3 | 4R3 | 24 | 240 | ||||||
| 1.2 | 1R2 | 4.7 | 4R7 | 27 | 270 | ||||||
| 1.3 | 1R3 | 5.1 | 5R1 | 30 | 300 | ||||||
| 1.4 | 1R4 | 5.6 | 5R6 | 33 | 330 | ||||||
| 1.5 | 1R5 | 6.2 | 6R2 | 36 | 360 | ||||||
| 1.6 | 1R6 | 6.8 | 6R8 | 39 | 390 | ||||||
| 1.7 | 1R7 | 7.5 | 7R5 | 43 | 430 | ||||||
| 1.8 | 1R8 | 8.2 | 8R2 | 47 | 470 | ||||||
| 1.9 | 1R9 | 9.1 | 9R1 | 51 | 510 | ||||||
| 2.0 | 2R0 | 10 | 100 | 56 | 560 | ||||||
| 2.1 | 2R1 | 11 | 110 | 62 | 620 | ||||||
| 2.2 | 2R2 | 12 | 120 | 68 | 680 | ||||||
| 2.4 | 2R4 | 13 | 130 | G, J. | 75 | 750 | |||||
| 2.7 | 2R7 | 15 | 150 | 82 | 820 | ||||||
| 3.0 | 3R0 | 16 | 160 | 91 | 910 | ||||||
| 3.3 | 3R3 | 18 | 180 | 100 | 101 | ||||||
| 3.6 | 3R6 | 20 | 200 |
| Termination Code | Type / Outline | Capacitor Dimensions | Terminal Electrode Material | |||
|---|---|---|---|---|---|---|

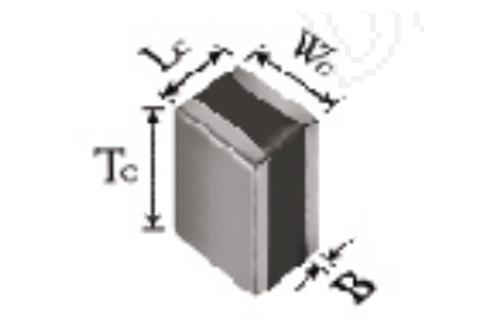

| Length (Lc) | Width (Wc) | Thickness (Tc) | Terminal Size (B) | |||
| W |
 |
.070 ± .006
|
.080 ± .010
|
.120 (3.04) max | .200 ± .010
|
Nickel-plated, Tin-plated
|

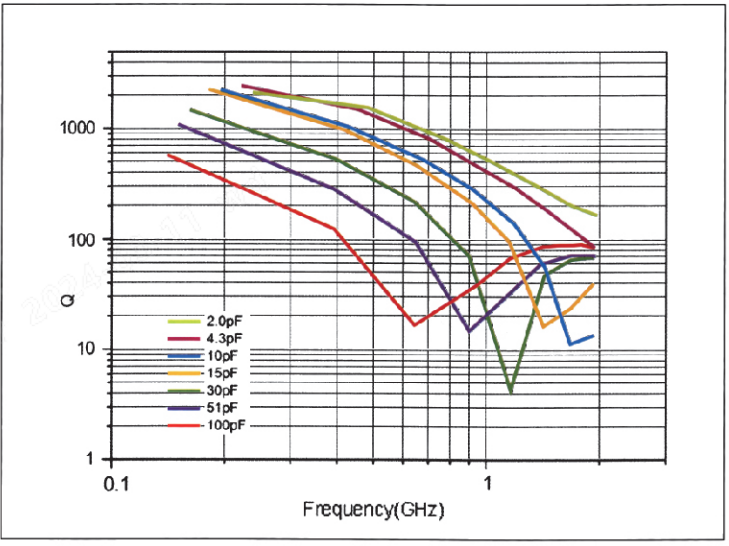

| Item | Specification |
|---|---|
| Quality Factor (Q) | ≥ 2000, measured at 1 ± 0.1 MHz, 1 ± 0.2 Vrms. |
| Insulation Resistance (IR) | ≥ 10⁵ MΩ at 25°C with rated voltage applied.
|
| Rated Voltage (WVDC) | See capacitance table. |
| Dielectric Withstanding Voltage (DWV) | Apply 250% of rated voltage for 5 seconds. |
| Operating Temperature Range | -55°C ~ +125°C
|

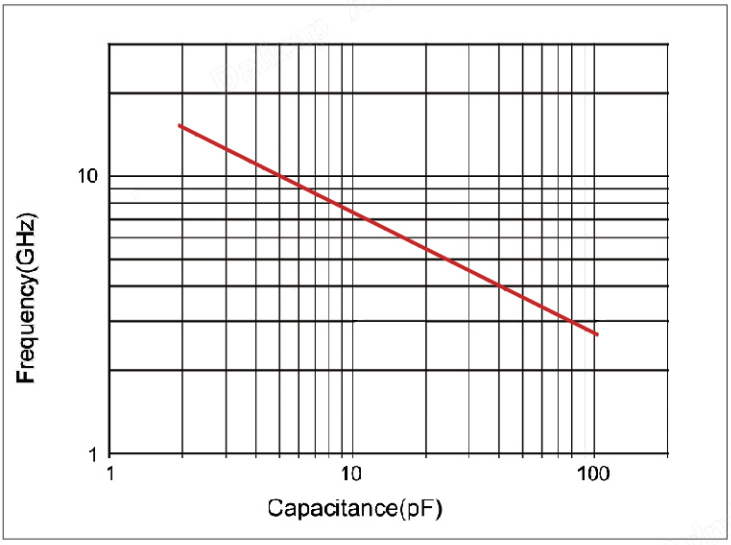

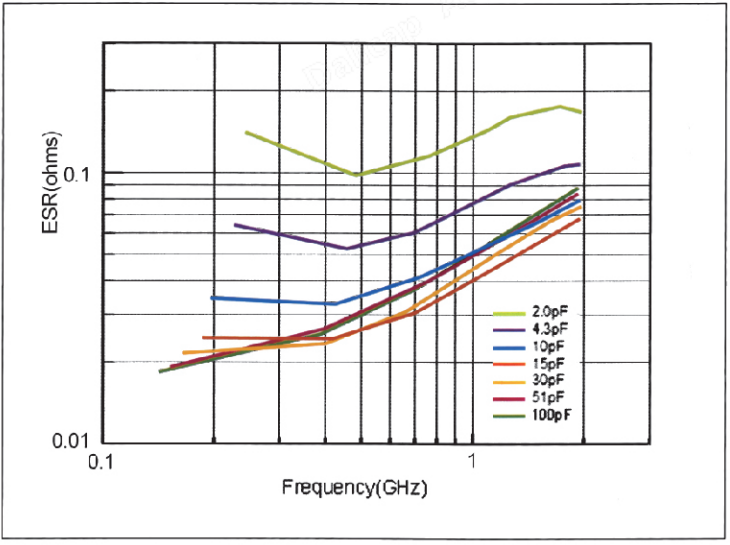

| Temperature Coefficient (TC) | 0 ± 30 ppm/°C |
| Capacitance Drift | ±0.2% or ±0.05 pF, whichever is greater. |
| Piezoelectric Effect | None |
