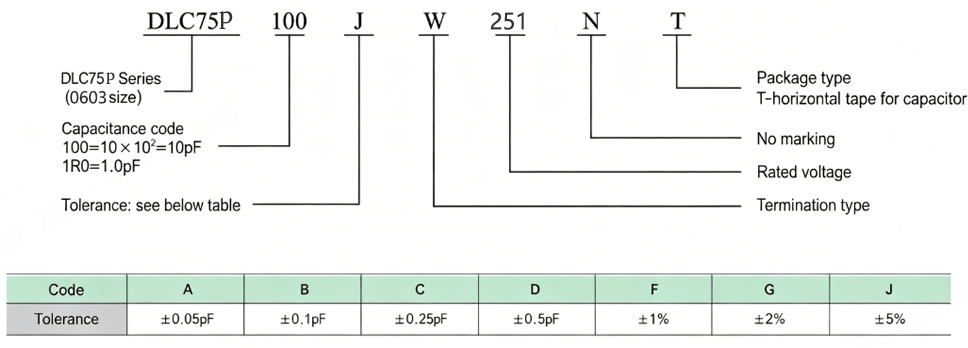

ຮຸ່ນ No: DLC75P(0603)
The file is encrypted. Please fill in the following information to continue accessing it
| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 0R1 | A, B, C, D. | 250V Code 251 | 2.2 | 2R2 | A, B, C, D. | 250V Code 251 | 16 | 160 | F, G, J. | 250V Code 251 |
| 0.2 | 0R2 | 2.4 | 2R4 | 18 | 180 | ||||||
| 0.3 | 0R3 | 2.7 | 2R7 | 20 | 200 | ||||||
| 0.4 | 0R4 | 3.0 | 3R0 | 22 | 220 | ||||||
| 0.5 | 0R5 | 3.3 | 3R3 | 24 | 240 | ||||||
| 0.6 | 0R6 | 3.6 | 3R6 | 27 | 270 | ||||||
| 0.7 | 0R7 | 3.9 | 3R9 | 30 | 300 | ||||||
| 0.8 | 0R8 | 4.3 | 4R3 | 33 | 330 | ||||||
| 0.9 | 0R9 | 4.7 | 4R7 | 36 | 360 | ||||||
| 1.0 | 1R0 | 5.1 | 5R1 | 39 | 390 | ||||||
| 1.1 | 1R1 | 5.6 | 5R6 | 43 | 430 | ||||||
| 1.2 | 1R2 | 6.2 | 6R2 | A, B, C. | 47 | 470 | |||||
| 1.3 | 1R3 | 6.8 | 6R8 | 51 | 510 | ||||||
| 1.4 | 1R4 | 7.5 | 7R5 | 56 | 560 | ||||||
| 1.5 | 1R5 | 8.2 | 8R2 | 62 | 620 | ||||||
| 1.6 | 1R6 | 9.1 | 9R1 | 68 | 680 | ||||||
| 1.7 | 1R7 | 10 | 100 | F, G, J. | 75 | 750 | |||||
| 1.8 | 1R8 | 11 | 110 | 82 | 820 | ||||||
| 1.9 | 1R9 | 12 | 120 | 91 | 910 | ||||||
| 2.0 | 2R0 | 13 | 130 | 100 | 101 | ||||||
| 2.1 | 2R1 | 15 | 150 |
| Termination Code | Type / Outline | Capacitor Dimensions | Terminal Electrode Material | |||
|---|---|---|---|---|---|---|
| Length (Lc) | Width (Wc) | Thickness (Tc) | Terminal Size (B) | |||
| W |
 |
.063 ± .006
|
.031 ± .006
|
.031 ± .006
|
.014 ± .006
|
Nickel-plated, Tin-plated
|
| Kit Code | Capacitance Range (pF) | Capacitance Values (pF) | Tolerance |
|---|---|---|---|
| DK DLC75P01 | 0.1 ~ 2.0 | 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.5, 1.6, 1.8, 2.0 | ±0.1 pF |
| DK DLC75P02 | 1.0 ~ 10 | 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.4, 2.7, 3.0, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2 | ±0.1 pF |
| 10 | ±5% | ||
| DK DLC75P03 | 10 ~ 100 | 10, 12, 15, 18, 20, 22, 24, 27, 30, 33, 39, 47, 56, 68, 82, 100 | ±5% |
