Shenzhen Tongxinke Electronic Technology Co., Ltd.

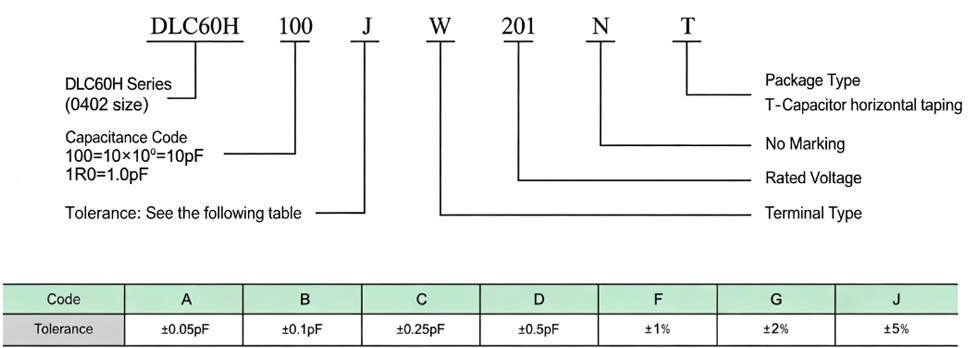

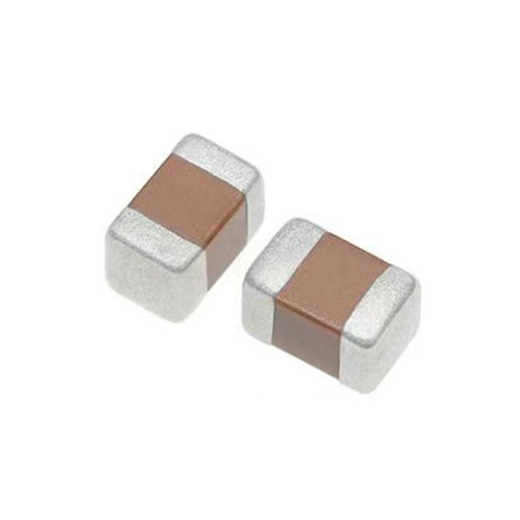

ຮຸ່ນ No: DLC60H(0402)
The file is encrypted. Please fill in the following information to continue accessing it
| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 0R1 | A, B, C, D. | 200V / Code 201 | 2.0 | 2R0 | A, B, C, D. | 200V / Code 201 | 10 | 100 | F, G, J. | 200V / Code 201 |
| 0.2 | 0R2 | 2.1 | 2R1 | 12 | 120 | ||||||
| 0.3 | 0R3 | 2.2 | 2R2 | 13 | 130 | ||||||
| 0.4 | 0R4 | 2.4 | 2R4 | 15 | 150 | ||||||
| 0.5 | 0R5 | 2.7 | 2R7 | 16 | 160 | ||||||
| 0.6 | 0R6 | 3.0 | 3R0 | 18 | 180 | ||||||
| 0.7 | 0R7 | 3.3 | 3R3 | 20 | 200 | ||||||
| 0.8 | 0R8 | 3.6 | 3R6 | 22 | 220 | ||||||
| 0.9 | 0R9 | 3.9 | 3R9 | 24 | 240 | ||||||
| 1.0 | 1R0 | 4.3 | 4R3 | 27 | 270 | ||||||
| 1.1 | 1R1 | 4.7 | 4R7 | B, C, D. | 30 | 300 | |||||
| 1.2 | 1R2 | 5.1 | 5R1 | 33 | 330 | ||||||
| 1.3 | 1R3 | 5.6 | 5R6 | ||||||||
| 1.4 | 1R4 | 6.2 | 6R2 | ||||||||
| 1.5 | 1R5 | 6.8 | 6R8 | ||||||||
| 1.6 | 1R6 | 7.5 | 7R5 | ||||||||
| 1.7 | 1R7 | 8.2 | 8R2 | ||||||||
| 1.8 | 1R8 | 9.1 | 9R1 | ||||||||
| 1.9 | 1R9 |
| Termination Code | Type / Outline | Capacitor Dimensions | Terminal Electrode Material | |||
|---|---|---|---|---|---|---|
| Length (Lc) | Width (Wc) | Thickness (Tc) | Terminal Size (B) | |||
| W |
 |
.040 ± .004
|
.020 ± .004
|
.020 ± .004
|
.008 ~ .014
|
Nickel-plated, Tin-plated
|

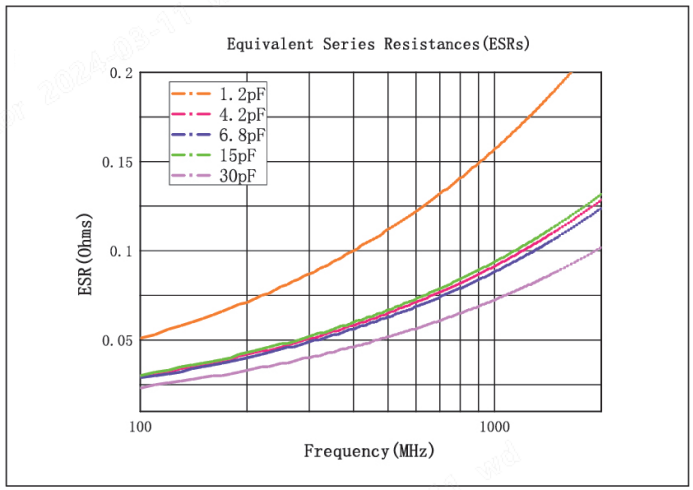

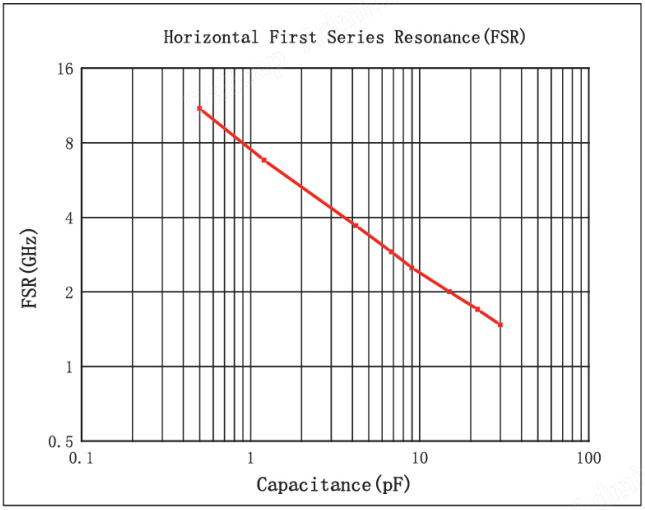

| Kit Code | Capacitance Range (pF) | Capacitance Values (pF) | Tolerance |
|---|---|---|---|
| DK DLC60H01 | 0.1 ~ 2.0 | 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 | ±0.1 pF |
| DK DLC60H02 | 1.0 ~ 10 | 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.4, 2.7, 3.0, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2 | ±0.1 pF |
| 10 | ±5% | ||
| DK DLC60H03 | 10 ~ 33 | 10, 12, 13, 15, 16, 18, 20, 22, 24, 27, 30, 33 | ±5% |
| Item | Specification |
|---|---|
| Quality Factor (Q) | ≥ 2000, at 1 ± 0.1 MHz and 1 ± 0.2 Vrms. |
| Insulation Resistance (IR) | ≥ 10⁵ MΩ at 25°C with rated voltage applied.
|
| Rated Voltage (WVDC) | See capacitance table. |
| Dielectric Withstanding Voltage (DWV) | Apply 200% of rated voltage for 5 seconds. |
| Operating Temperature Range | -55°C ~ +125°C
|
| Temperature Coefficient (TC) | 0 ± 30 ppm/°C |
| Capacitance Drift | ±0.2% or ±0.05 pF, whichever is greater. |
| Piezoelectric Effect | None |
