Shenzhen Tongxinke Electronic Technology Co., Ltd.

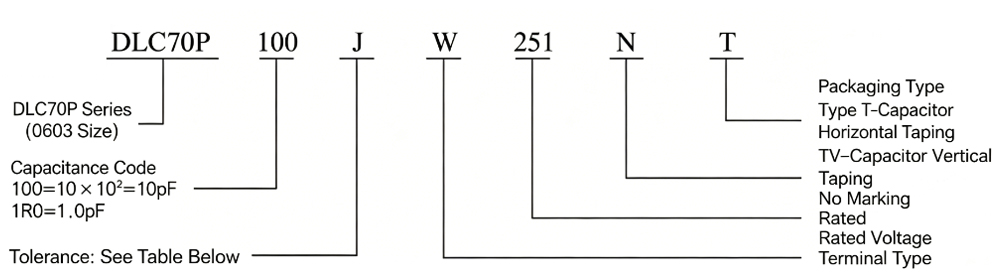

ຮຸ່ນ No: DLC70P(0603)
The file is encrypted. Please fill in the following information to continue accessing it
| ItemS | pecification |
| Quality Factor (Q value) | ≥ 2000, at 1 ± 0.1 MHz, 1 ± 0.2 Vrms. |
| Insulation Resistance (IR) | ≥ 10⁵ MΩ at 25°C, rated voltage applied.
|
| Dielectric Withstanding Voltage (DWV) | 250% of rated voltage applied for 5 seconds. |
| Operating Temperature Range | -55°C ~ +125°C
|
| Temperature Coefficient (TC) | 0 ± 30 ppm/°C |
| Capacitance Drift | ±0.2% or ±0.05 pF, whichever is greater. |
| Piezoelectric Effect | None |
| Item | Specification | Method |
| Resistance to Soldering Heat | Appearance: No mechanical damage.
|
Preheat at 150°C ~ 180°C for 1 minute, immerse in solder at 260 ± 5°C for 10 ± 1 seconds, and test after cooling for 24 ± 2 hours. |
| Thermal Shock | Appearance: No mechanical damage.
|
Test in accordance with MIL-STD-202, Method 107, Condition A.
|
| Moisture Resistance | Appearance: No mechanical damage.
|
Test in accordance with MIL-STD-202, Method 106. |
| Steady State Humidity Heat | Appearance: No mechanical damage.
|
Test in accordance with MIL-STD-202, Method 103, Condition A.
|
| Life (Endurance) | Appearance: No mechanical damage.
|
Test in accordance with MIL-STD-202, Method 108.
|
