Shenzhen Tongxinke Electronic Technology Co., Ltd.

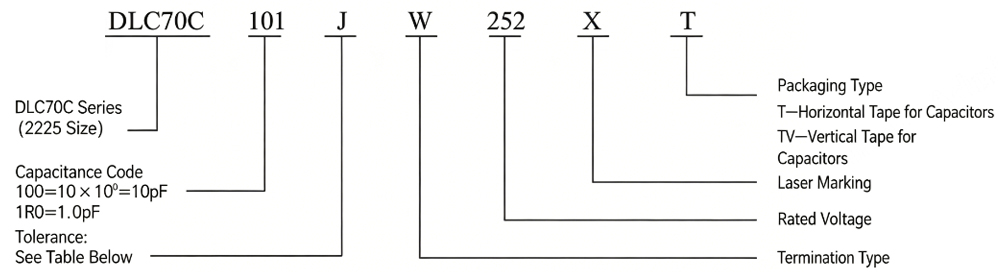

ຮຸ່ນ No: DLC70C(2225)
The file is encrypted. Please fill in the following information to continue accessing it
| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0R5 | B, C, D. | 2500V Code: 252 or 3600V Code: 362 | 3.9 | 3R9 | B, C, D. | 2500V Code: 252 or 3600V Code: 362 | 36 | 360 | F, G, J. | 2500V Code: 252 or 3600V Code: 362 | 330 | 331 | F, G, J. | 1500V Code: 152 or 2000V Code: 202 |
| 0.6 | 0R6 | 4.3 | 4R3 | 39 | 390 | 360 | 361 | ||||||||
| 0.7 | 0R7 | 4.7 | 4R7 | 43 | 430 | 390 | 391 | ||||||||
| 0.8 | 0R8 | 5.1 | 5R1 | 47 | 470 | 430 | 431 | ||||||||
| 0.9 | 0R9 | 5.6 | 5R6 | 51 | 510 | 470 | 471 | ||||||||
| 1.0 | 1R0 | 6.2 | 6R2 | 56 | 560 | 510 | 511 | 1000V Code: 102 or 1500V Code: 152 | |||||||
| 1.1 | 1R1 | 6.8 | 6R8 | 62 | 620 | 560 | 561 | ||||||||
| 1.2 | 1R2 | 7.5 | 7R5 | 68 | 680 | 620 | 621 | ||||||||
| 1.3 | 1R3 | 8.2 | 8R2 | 75 | 750 | 680 | 681 | ||||||||
| 1.4 | 1R4 | 9.1 | 9R1 | 82 | 820 | 750 | 751 | ||||||||
| 1.5 | 1R5 | 10 | 100 | F, G, J. | 91 | 910 | 820 | 821 | |||||||
| 1.6 | 1R6 | 11 | 110 | 100 | 101 | 910 | 911 | ||||||||
| 1.7 | 1R7 | 12 | 120 | 110 | 111 | 2500V Code: 252 or 3000V Code: 302 | 1000 | 102 | |||||||
| 1.8 | 1R8 | 13 | 130 | 120 | 121 | 1100 | 112 | ||||||||
| 1.9 | 1R9 | 15 | 150 | 130 | 131 | 1200 | 122 | ||||||||
| 2.0 | 2R0 | 16 | 160 | 150 | 151 | 1500 | 152 | 500V Code: 501 | |||||||
| 2.1 | 2R1 | 18 | 180 | 160 | 161 | 1800 | 182 | ||||||||
| 2.2 | 2R2 | 20 | 200 | 180 | 181 | 2200 | 222 | ||||||||
| 2.4 | 2R4 | 22 | 220 | 200 | 201 | 2700 | 272 | ||||||||
| 2.7 | 2R7 | 24 | 240 | 220 | 221 | ||||||||||
| 3.0 | 3R0 | 27 | 270 | 240 | 241 | ||||||||||
| 3.3 | 3R3 | 30 | 300 | 270 | 271 | ||||||||||
| 3.6 | 3R6 | 33 | 330 | 300 | 301 |
