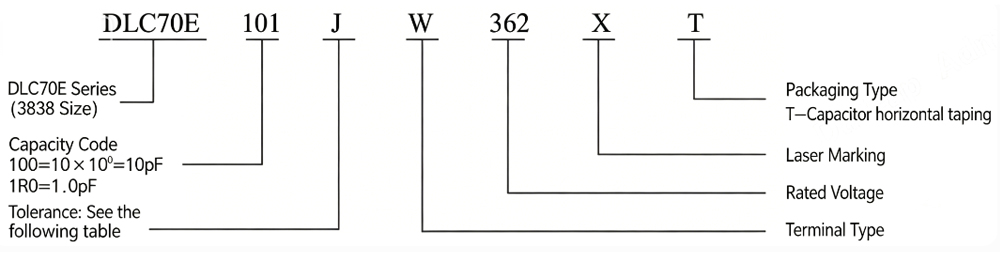

ຮຸ່ນ No: DLC70E(3838)

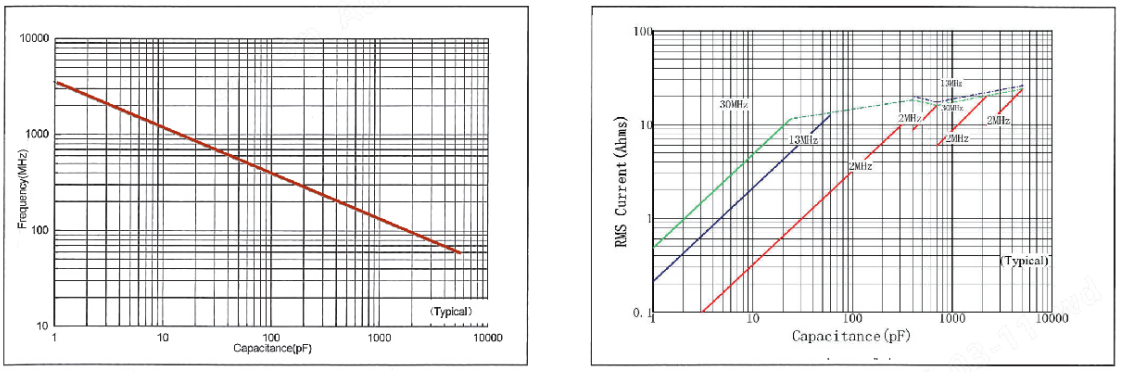

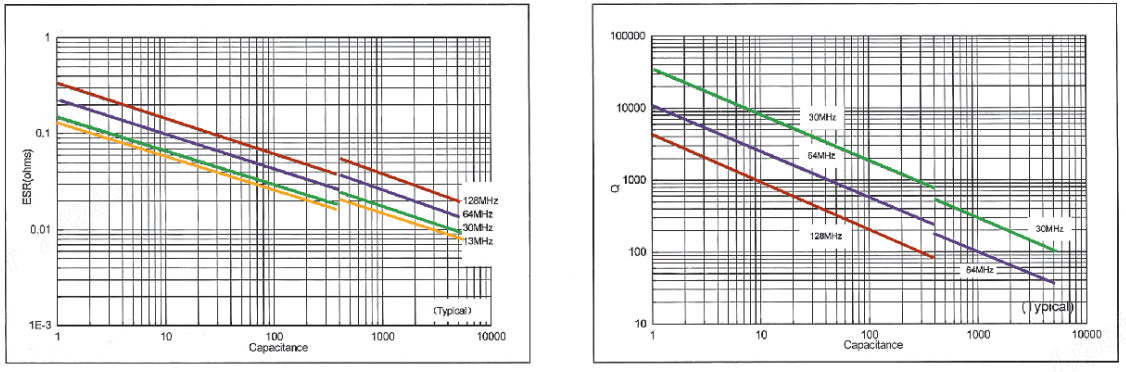

The file is encrypted. Please fill in the following information to continue accessing it
| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0R5 | B, C, D. | 3600V Code: 362 or 7200V Code: 722 | 4.7 | 4R7 | B, C, D. | 3600V Code: 362 or 7200V Code: 722 | 51 | 510 | F, G, J. | 3600V Code: 362 or 7200V Code: 722 | 560 | 561 | F, G, J. | 2500V Code: 252 |
| 0.6 | 0R6 | 5.1 | 5R1 | F, G, J. | 56 | 560 | 620 | 621 | 1000V Code: 102 | ||||||
| 0.7 | 0R7 | 5.6 | 5R6 | 62 | 620 | 680 | 681 | ||||||||
| 0.8 | 0R8 | 6.2 | 6R2 | 68 | 680 | 750 | 751 | ||||||||
| 0.9 | 0R9 | 6.8 | 6R8 | 75 | 750 | 820 | 821 | ||||||||
| 1.0 | 1R0 | 7.5 | 7R5 | 82 | 820 | 910 | 911 | 500V Code: 501 | |||||||
| 1.1 | 1R1 | 8.2 | 8R2 | 91 | 910 | 1000 | 102 | ||||||||
| 1.2 | 1R2 | 9.1 | 9R1 | 100 | 101 | 1100 | 112 | ||||||||
| 1.3 | 1R3 | 10 | 100 | 110 | 111 | 1200 | 122 | ||||||||
| 1.4 | 1R4 | 11 | 110 | 120 | 121 | 1500 | 152 | ||||||||
| 1.5 | 1R5 | 12 | 120 | 130 | 131 | 1800 | 182 | ||||||||
| 1.6 | 1R6 | 13 | 130 | 150 | 151 | 2200 | 222 | ||||||||
| 1.7 | 1R7 | 15 | 150 | 160 | 161 | 2400 | 242 | ||||||||
| 1.8 | 1R8 | 16 | 160 | 180 | 181 | 3600V Code: 362 | 2700 | 272 | |||||||
| 1.9 | 1R9 | 18 | 180 | 200 | 201 | 2500V Code: 252 | 3000 | 302 | |||||||
| 2.0 | 2R0 | 20 | 200 | 220 | 221 | 3300 | 332 | ||||||||
| 2.1 | 2R1 | 22 | 220 | 240 | 241 | 3600 | 362 | ||||||||
| 2.2 | 2R2 | 24 | 240 | 270 | 271 | 3900 | 392 | ||||||||
| 2.4 | 2R4 | 27 | 270 | 300 | 301 | 4300 | 432 | ||||||||
| 2.7 | 2R7 | 30 | 300 | 330 | 331 | 4700 | 472 | ||||||||
| 3.0 | 3R0 | 33 | 330 | 360 | 361 | 5100 | 512 | ||||||||
| 3.3 | 3R3 | 36 | 360 | 390 | 391 | ||||||||||
| 3.6 | 3R6 | 39 | 390 | 430 | 431 | ||||||||||
| 3.9 | 3R9 | 43 | 430 | 470 | 471 | ||||||||||
| 4.3 | 4R3 | 47 | 470 | 510 | 511 |
| Termination Code | Type / Outline | Capacitor Dimensions | Lead Dimensions | Terminal Electrode & Lead Material | |||||
|---|---|---|---|---|---|---|---|---|---|
| Length (Lc) | Width (Wc) | Thickness (Tc) | Termination Size (B) | Length (LL) | Width (WL) | Thickness (TL) | |||
| W | Chip | .380 +.015 / -.010 (9.65 +0.38 / -0.25) | .380 ± .010 (9.65 ± 0.25) | .170 (4.32) max | .024 ~ .059 (0.60 ~ 1.50) | — | — | — | Nickel-plated, tin-plated, RoHS compliant |
| L | — | — | — | Nickel-plated, 10Pb90Sn plated | |||||
| MS | Microstrip | .728 (18.50) min | .350 ± .020 (8.89 ± 0.50) | .008 ± .001 (0.20 ± 0.025) | Silver-plated copper strip | ||||
| AR | Axial leaded | .315 ± .010 (8.00 ± 0.25) | .008 ± .001 (0.20 ± 0.025) | Silver-plated copper strip | |||||
| RR | Radial leaded | .380 +.015 / -.010 (9.65 +0.38 / -0.25) | .380 ± .010 (9.65 ± 0.25) | .177 (4.50) max | — | .354 (9.00) min | .118 ± .010 (3.00 ± 0.25) | .012 ± .001 (0.30 ± 0.025) | Silver-plated copper strip |
| RW | Radial wire | .709 (18.00) min | Lead diameter .031 ± .004 (0.80 ± 0.10) | Silver-plated copper strip | |||||
| AW | Axial wire | .906 (23.00) min | Silver-plated copper strip | ||||||
| Termination Code | Type / Outline | Capacitor Dimensions | Lead Dimensions | Terminal Electrode & Lead Material | |||||
|---|---|---|---|---|---|---|---|---|---|
| Length (Lc) | Width (Wc) | Thickness (Tc) | Termination Size (B) | Length (LL) | Width (WL) | Thickness (TL) | |||
| P | Chip (Non-magnetic) | .380 +.015 / -.010 (9.65 +0.38 / -0.25) | .380 ± .010 (9.65 ± 0.25) | .170 (4.32) max | .024 ~ .059 (0.60 ~ 1.50) | — | — | — | Copper-plated, tin-plated, RoHS compliant |
| MN | Microstrip (Non-magnetic) | .728 (18.50) min | .350 ± .020 (8.89 ± 0.50) | .008 ± .001 (0.20 ± 0.025) | Silver-plated copper strip | ||||
| AN | Axial leaded (Non-magnetic) | .315 ± .010 (8.00 ± 0.25) | .008 ± .001 (0.20 ± 0.025) | Silver-plated copper strip | |||||
| FN | Radial leaded (Non-magnetic) | .380 +.015 / -.010 (9.65 +0.38 / -0.25) | .380 ± .010 (9.65 ± 0.25) | .177 (4.50) max | — | .354 (9.00) min | .118 ± .010 (3.00 ± 0.25) | .012 ± .001 (0.30 ± 0.025) | Silver-plated copper strip |
| RN | Radial wire (Non-magnetic) | .709 (18.00) min | Lead diameter .031 ± .004 (0.80 ± 0.10) | Silver-plated copper strip | |||||
| BN | Axial wire (Non-magnetic) | .906 (23.00) min | Silver-plated copper strip |
