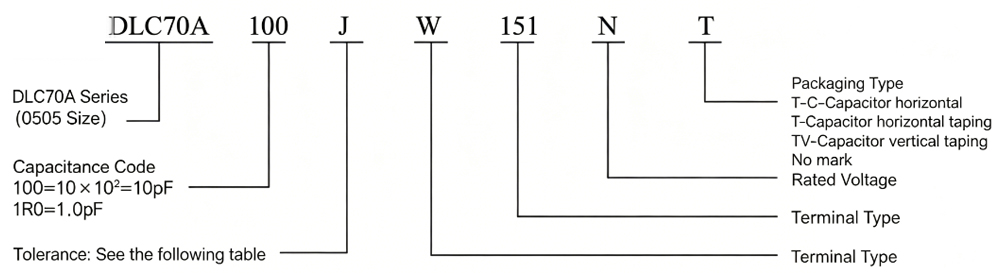

ຮຸ່ນ No: DLC70A(0505)
The file is encrypted. Please fill in the following information to continue accessing it
| Code | A | B | C | D | F | G | J |
|---|---|---|---|---|---|---|---|
| Tolerance | ±0.05 pF | ±0.1 pF | ±0.25 pF | ±0.5 pF | ±1% | ±2% | ±5% |
| Item | Specification |
|---|---|
| Quality Factor (Q value) | ≥ 10000, at 1 ± 0.1 MHz, 1 ± 0.2 Vrms. |
| Insulation Resistance (IR) | ≥ 10⁵ MΩ at 25°C, rated voltage applied.
|
| Rated Voltage (WVDC) | See Capacitance Table. |
| Dielectric Withstanding Voltage (DWV) | 250% of rated voltage applied for 5 seconds. |
| Operating Temperature Range | -55°C ~ +125°C
|
| Temperature Coefficient (TC) | 0 ± 30 ppm/°C |
| Capacitance Drift | ±0.2% or ±0.05 pF, whichever is greater. |
| Piezoelectric Effect | None |
| Termination Type | See Termination Type and Dimension Table. |
| Item | Specification | Method |
|---|---|---|
| Resistance to Soldering Heat | Appearance: No mechanical damage.
|
Preheat at 150°C ~ 180°C for 1 minute, immerse in solder at 260 ± 5°C for 10 ± 1 seconds, test after cooling for 24 ± 2 hours. |
| Thermal Shock | DWV: Meet initial requirements.
|
Test per MIL-STD-202, Method 107, Condition A.
|
| Moisture Resistance | (Same thermal shock specs apply) | Test per MIL-STD-202, Method 106. |
| Steady-State Humidity Heat | IR: Meet initial requirements.
|
Test per MIL-STD-202, Method 103, Condition A.
|
| Life (Endurance) | IR: ≥ 30% of the initial requirement value.
|
Test per MIL-STD-202, Method 108.
|

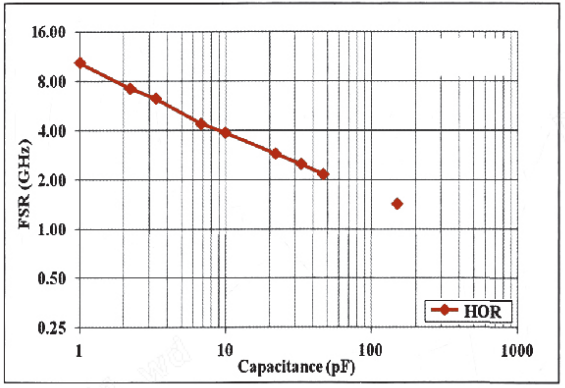

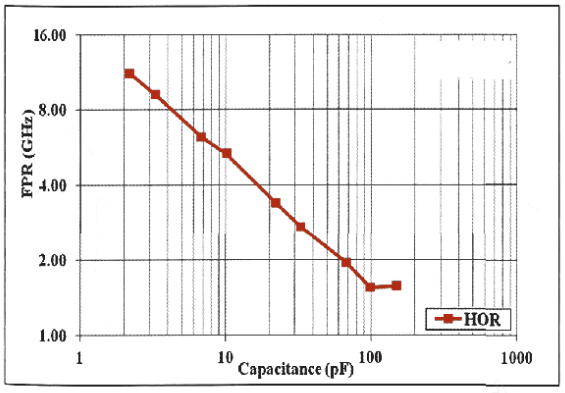

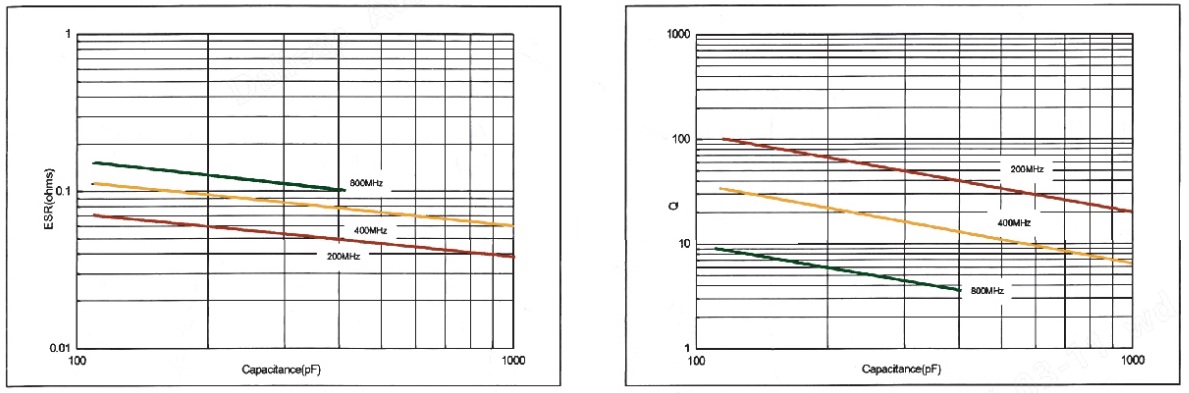

| Kit Part No. | Description | Capacitance Range (pF) | Capacitance Values (pF) | Tolerance |
|---|---|---|---|---|
| DKDLC70A01 | DLC70A series capacitors, 16 values, 5 or 10 pcs each | 0.1~2.0 | 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.5
|
±0.1 pF
|
| DKDLC70A02 | DLC70A series capacitors, 16 values, 5 or 10 pcs each | 1.0~10 | 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.4, 2.7
|
±0.1 pF
|
| DKDLC70A03 | DLC70A series capacitors, 16 values, 5 or 10 pcs each | 10~100 | 10, 12, 15, 18, 20, 22, 24, 27, 30, 33, 39, 47, 56, 68, 82, 100 | ±5% |
| DKDLC70A04 | DLC70A series capacitors, 16 values, 5 or 10 pcs each | 100~1000 | 100, 120, 150, 180, 200, 220, 240, 270, 300, 330, 390, 470, 560, 680, 820, 1000 | ±5% |
| DKDLC70A05 | DLC70A series capacitors (non-magnetic), 16 values, 5 or 10 pcs each | 0.1~2.0
|
0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.5
|
±0.1 pF
|
| DKDLC70A06 | DLC70A series capacitors (non-magnetic), 16 values, 5 or 10 pcs each | 1.0~10
|
1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.4, 2.7
|
±0.1 pF
|
| DKDLC70A07 | DLC70A series capacitors (non-magnetic), 16 values, 5 or 10 pcs each | 10~100
|
10, 12, 15, 18, 20, 22, 24, 27, 30, 33, 39, 47, 56, 68, 82, 100 | ±5% |
| DKDLC70A08 | DLC70A series capacitors (non-magnetic), 16 values, 5 or 10 pcs each | 100~1000
|
100, 120, 150, 180, 200, 220, 240, 270, 300, 330, 390, 470, 560, 680, 820, 1000 | ±5% |
