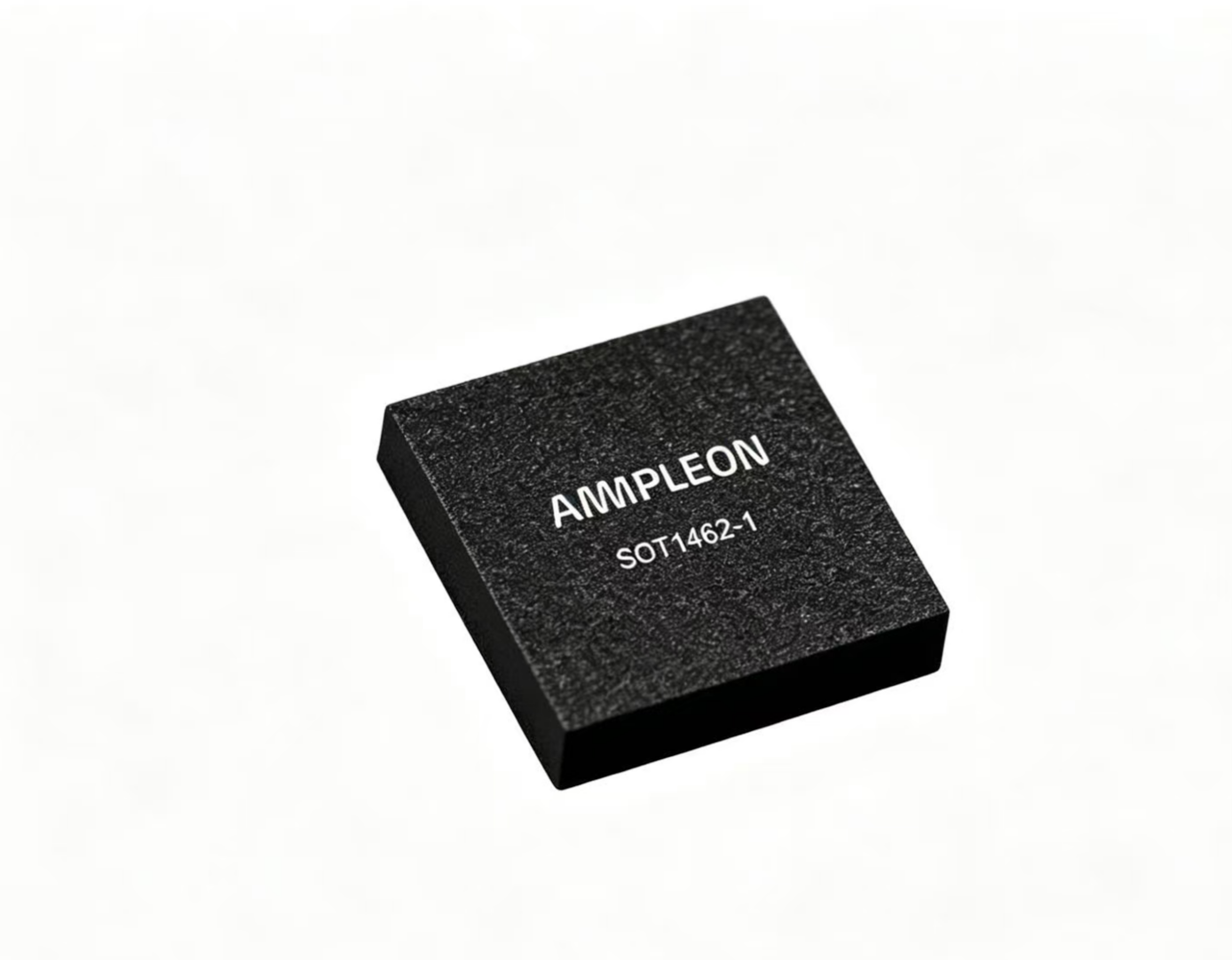

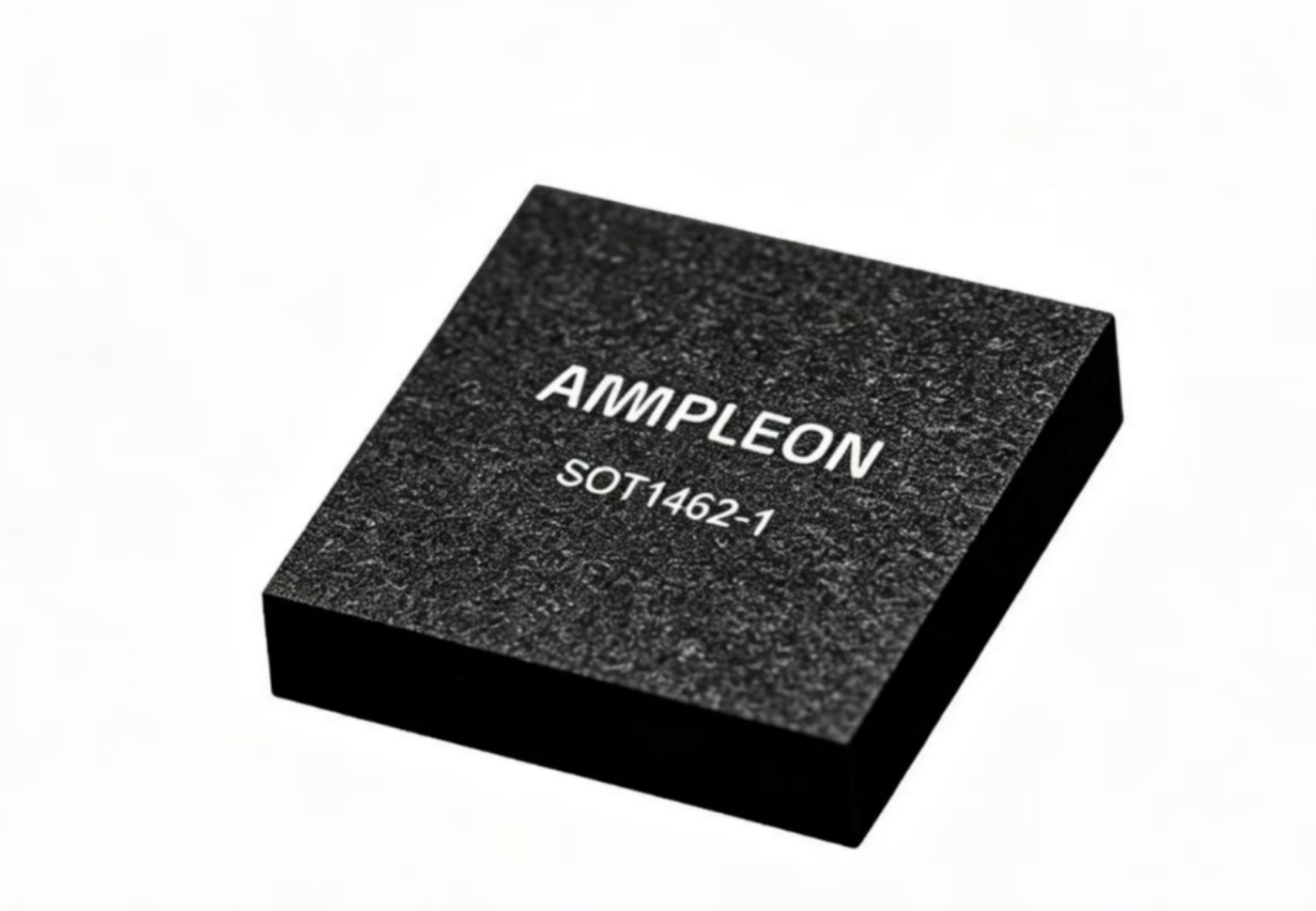

ຮຸ່ນ No: BLM9D1920-08AMZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VDS | Drain-Source Voltage | 65 | V |
| VGS | Gate-Source Voltage | -6 ~ +11 | V |
| Tstg | Storage Temperature | -55 ~ +125 | °C |
| Tj | Maximum Junction Temperature | 175 | °C |
| Tcase | Maximum Case Temperature | 125 | °C |
| Symbol | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VGSq (Carrier) | Quiescent Gate-Source Voltage | 1.65 | 2.03 | 2.75 | V |
| IGSS (Carrier/Peaking) | Gate Leakage Current | - | 140 | - | nA |
| IDSS (Driver/Final) | Drain Leakage Current | - | 1.4 | - | μA |
| Symbol | Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Frequency | Frequency Range | 1880 | - | 2025 | MHz |
| Gp | Power Gain | 25 | 26.8 | - | dB |
| PL(3dB) | Output Power at 3dB Gain Compression | 38.5 | 39.6 (9W) | - | dBm |
| PL(AV) | Average Output Power (W-CDMA) | - | 1.12W (30.5dBm) | - | - |
| ηD | Drain Efficiency | 36 | 42 | - | % |
| RLin | Input Return Loss | -24 | -10 | - | dB |
| Gflat | Gain Flatness (Full Band) | - | 0.8 | - | dB |
| ACPR5M | 5MHz Adjacent Channel Power Ratio | - | -28 | - | dBc |
| ΔG/ΔT | Gain Temperature Coefficient | - | 0.04 | - | dB/°C |
| K | Rollett Stability Factor | - | >1 | - | - |
| Symbol | Parameter | Typ | Unit |
|---|---|---|---|
| Rth(j-c) | Junction-to-Case Thermal Resistance | 8.3~9.2 | K/W |
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | VGS_P | Gate Bias Voltage for Peaking Amplifier |
| 2/3/5/6/8/10/11/13/14/15/16/17/18/21 | GND | RF Ground / Power Ground; Exposed pad on the backside is also ground |
| 4 | RFin | RF Signal Input, 50Ω matched, DC grounded |
| 7 | VDS1_P | Drain Supply Voltage for Peaking Driver Stage |
| 9 | VDS2 | Drain Supply Voltage for Final Amplifier Stage |
| 12 | RFout | RF Signal Output, 50Ω matched, DC grounded |
| 19 | VDS1_C | Drain Supply Voltage for Carrier Driver Stage |
| 20 | VGS_C | Gate Bias Voltage for Carrier Amplifier |
