Shenzhen Tongxinke Electronic Technology Co., Ltd.

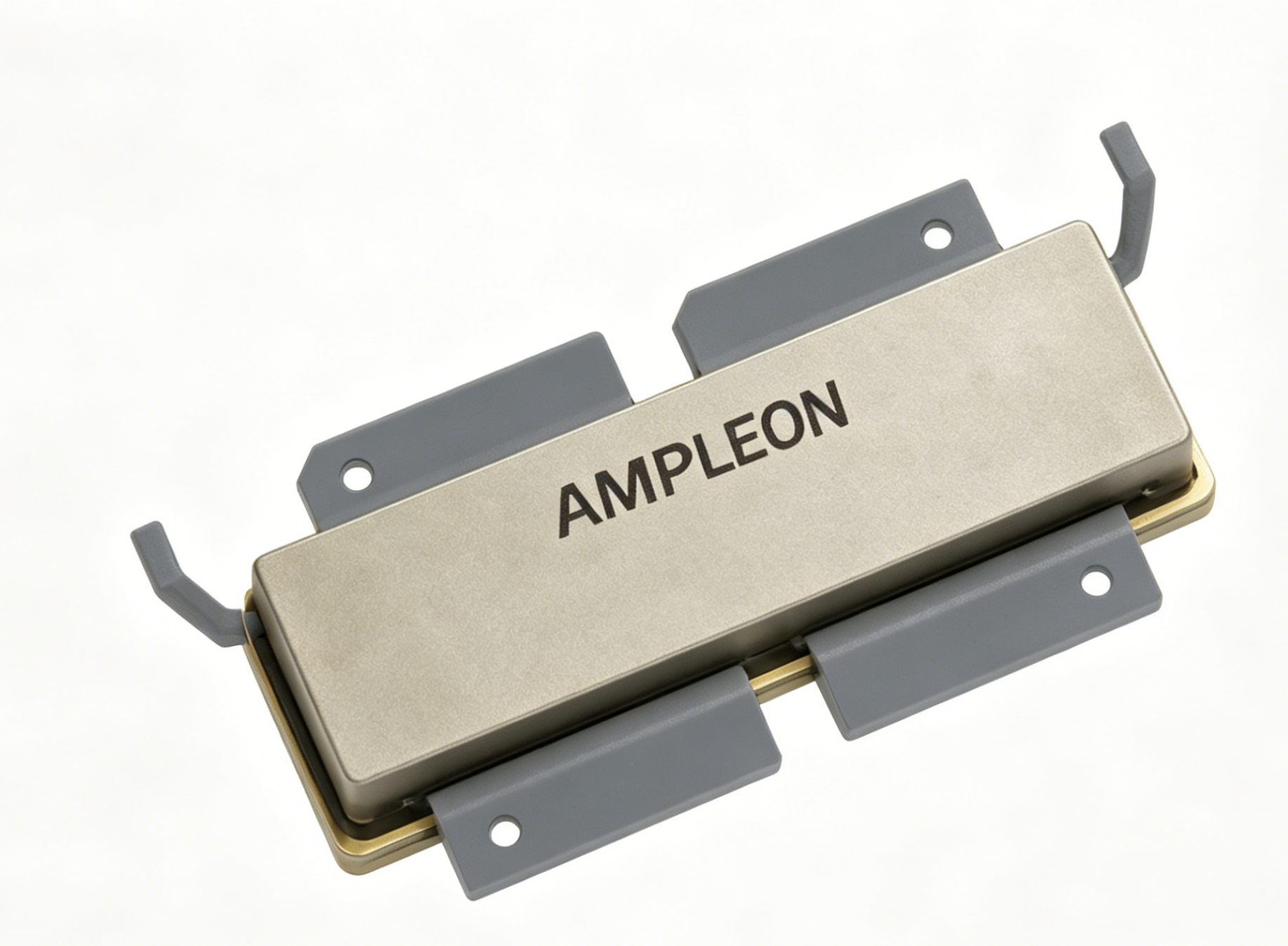

ຮຸ່ນ No: BLC10G27XS-400AVT BLC10G27XS-400AVTZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 2496 MHz to 2690 MHz (2.496–2.69 GHz), covering 5G NR n78/n79 and other key bands |
| Peak Output Power (P1dB) | 400 W (Continuous Wave, CW mode), typical 46.0 dBm |
| Typical Power Gain | 13.3 dB (Typical, in Doherty Configuration) |
| Typical Drain Efficiency | 50%+ (Doherty Configuration, Optimized DPD Performance) |
| Supply Voltage (VDS) | 28 V (Standard), Maximum Rated Voltage 65 V |
| Quiescent Drain Current (IDq) | 200 mA (Typical) |
| Package Type | SOT1258-4 (OMP-780-4F-1), 6-lead air cavity plastic earless flanged package, enhanced thermal dissipation |
| Special Features | Asymmetric Doherty architecture, integrated ESD protection, low output capacitance, integrated input/output impedance transformation, user-friendly PCB matching to 50-ohm |
| Linearity Performance | Optimized for high Peak-to-Average Power Ratio (PAPR) 5G NR signals, excellent ACPR performance after DPD correction |
