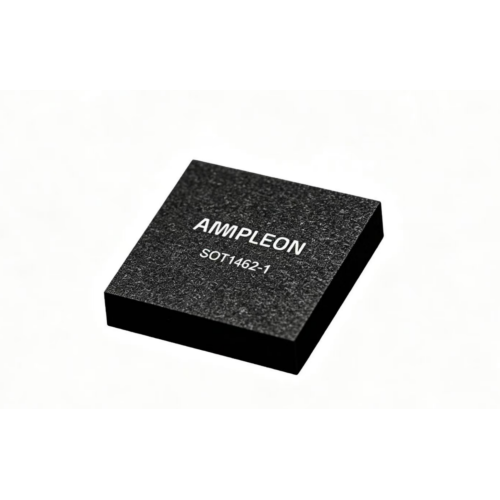

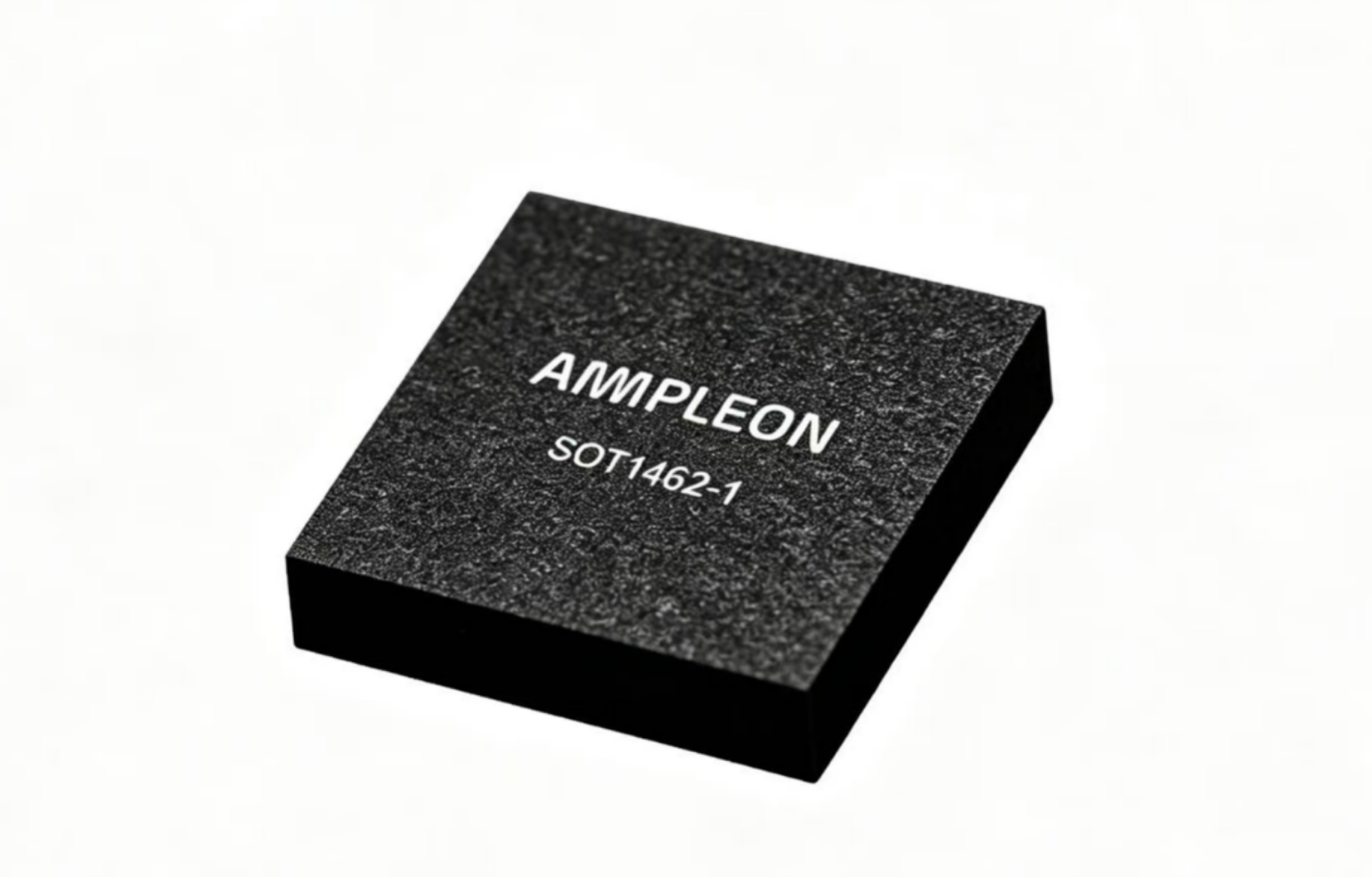

ຮຸ່ນ No: BLM9D3842-16AM BLM9D3842-16AMZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 3800 MHz ~ 4200 MHz (Precisely covers 5G NR n77 high-frequency core band)Ampleon |
| Peak Output Power | 16W Continuous Wave (CW), in Doherty Configuration (42dBm typical, at 28V supply, pulsed CW measurement)Ampleon |
| Typical Power Gain | 30.2 dB (at 28V supply, 32dBm average output power, 4000MHz, 1-carrier W-CDMA signal)Ampleon |
| Typical Drain Efficiency | 28.5% (at 10dB OBO, 1-carrier W-CDMA signal, PAR=7.2dB, 4000MHz)Ampleon |
| Supply Voltage | 26V/28V nominal, Maximum Rated Drain-Source Breakdown Voltage 65VAmpleon |
| Quiescent Current | 38 mA (carrier path), independent biasing for peaking path (VGSq(peak)=VGSq(carrier)-0.5V)Ampleon |
| Package Type | LGA-7x7-20-2, 7×7mm leadless thermal enhanced package with exposed thermal pad, 20 terminalsAmpleon |
| Port Characteristics | Internally matched to 50Ω input/output, no external matching required, simplifying RF PCB designAmpleon |
| Architecture | 3-stage fully integrated Doherty with built-in input splitter, output combiner, carrier/peaking amplifier paths and driver stagesAmpleon |
| Operating Temperature | -40°C ~ +125°C (Maximum Junction Temperature 175°C)Ampleon |
| Thermal Resistance | Junction-to-case thermal resistance as low as 10.76 K/W (at PL=0.8W, 1-carrier W-CDMA signal, PAR=7.2dB)Ampleon |
| Load Mismatch Tolerance | Capable of withstanding VSWR=10:1 through all phases (at 28V supply, 3800MHz, CW signal), improving system robustnessAmpleon |
| Gain Flatness | Only 2.7dB within 3800-4200MHz band, suitable for ultra-broadband communication systemsAmpleon |
| ESD Protection | CDM Class C3 (1000V), HBM Class 2 (2000V), enhancing device reliabilityAmpleon |
| Stability | Rollett stability factor K>1 (at -40°C, 0.15GHz to 5GHz frequency range), ensuring stable operation across the entire bandAmpleon |
