Shenzhen Tongxinke Electronic Technology Co., Ltd.

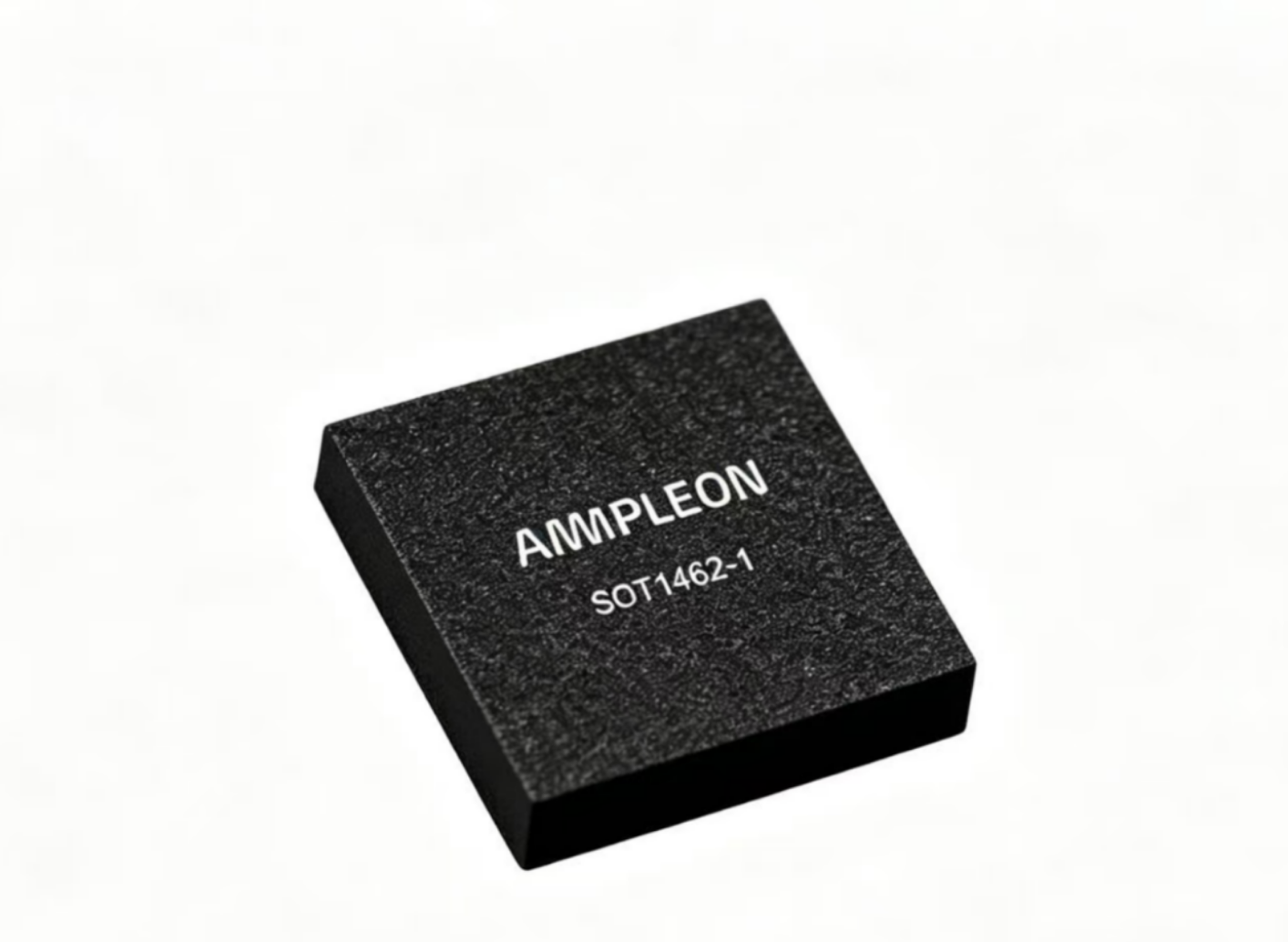

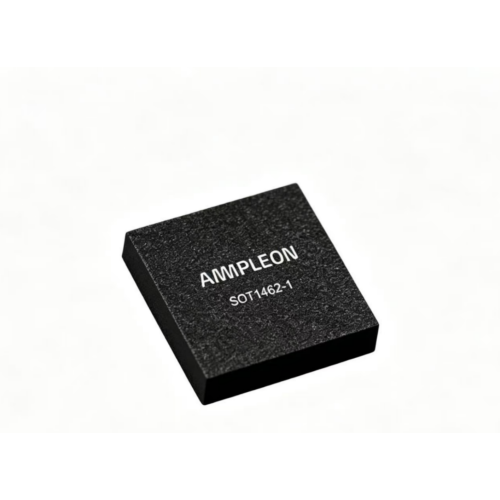

ຮຸ່ນ No: BLM9D3336-12AM BLM9D3336-12AMZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 3300 MHz ~ 3650 MHz (Precisely covers 5G NR n78 low-frequency band, compatible with 4G TDD-LTE 3.5GHz band) |
| Output Power at 1dB Compression | 40.9dBm (12.3W CW, at 28V supply, 3500MHz, CW measurement) |
| Typical Power Gain | 31.8 dB (at 28V supply, 40dBm output, 3500MHz, CW signal) |
| Typical Drain Efficiency | 30.0% (at PL=3.98W/36dBm, 1-carrier W-CDMA signal, PAR=7.2dB, 3500MHz) |
| Saturated Drain Efficiency | 38% (at PL=PL(1dB), 3500MHz) |
| Supply Voltage | 28V nominal, Maximum Rated Drain-Source Breakdown Voltage 65V |
| Quiescent Current | 80 mA (carrier path), independent biasing for peaking path (VGSq(peak)=VGSq(carrier)-0.5V) |
| Package Type | LGA-7x7-20 (PQFN-7x7-20), 7×7mm leadless thermal enhanced package with exposed thermal pad, 20 terminals |
| Port Characteristics | Internally pre-matched to 50Ω input/output, simplifying RF PCB design and reducing external components |
| Architecture | 3-stage fully integrated asymmetrical Doherty with built-in input splitter, output combiner, carrier/peaking amplifier paths and driver stages |
| Operating Temperature | -40°C ~ +125°C (Maximum Junction Temperature 175°C) |
| Thermal Resistance | Junction-to-case thermal resistance as low as 4.5 K/W (typical value, at PL=12.3W) |
| Load Mismatch Tolerance | Capable of withstanding VSWR=6:1 through all phases (at 28V supply, 3300MHz, CW signal), improving system robustness |
| Gain Flatness | Only 2.5dB within 3300-3650MHz band, suitable for ultra-broadband communication systems |
| ESD Protection | CDM Class C3 (1000V), HBM Class 2 (2000V), enhancing device reliability |
| Stability | Rollett stability factor K>1 (at -40°C, 0.15GHz to 5GHz frequency range), ensuring stable operation across the entire band |
