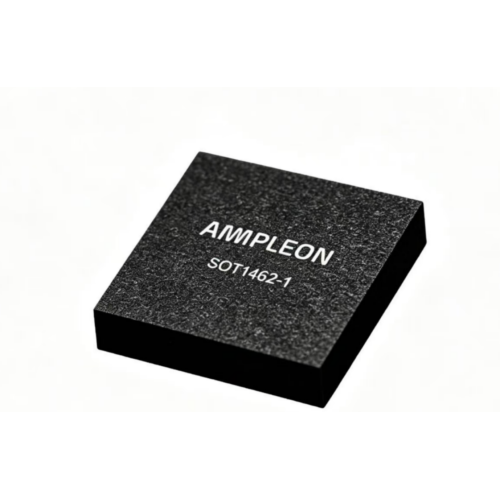

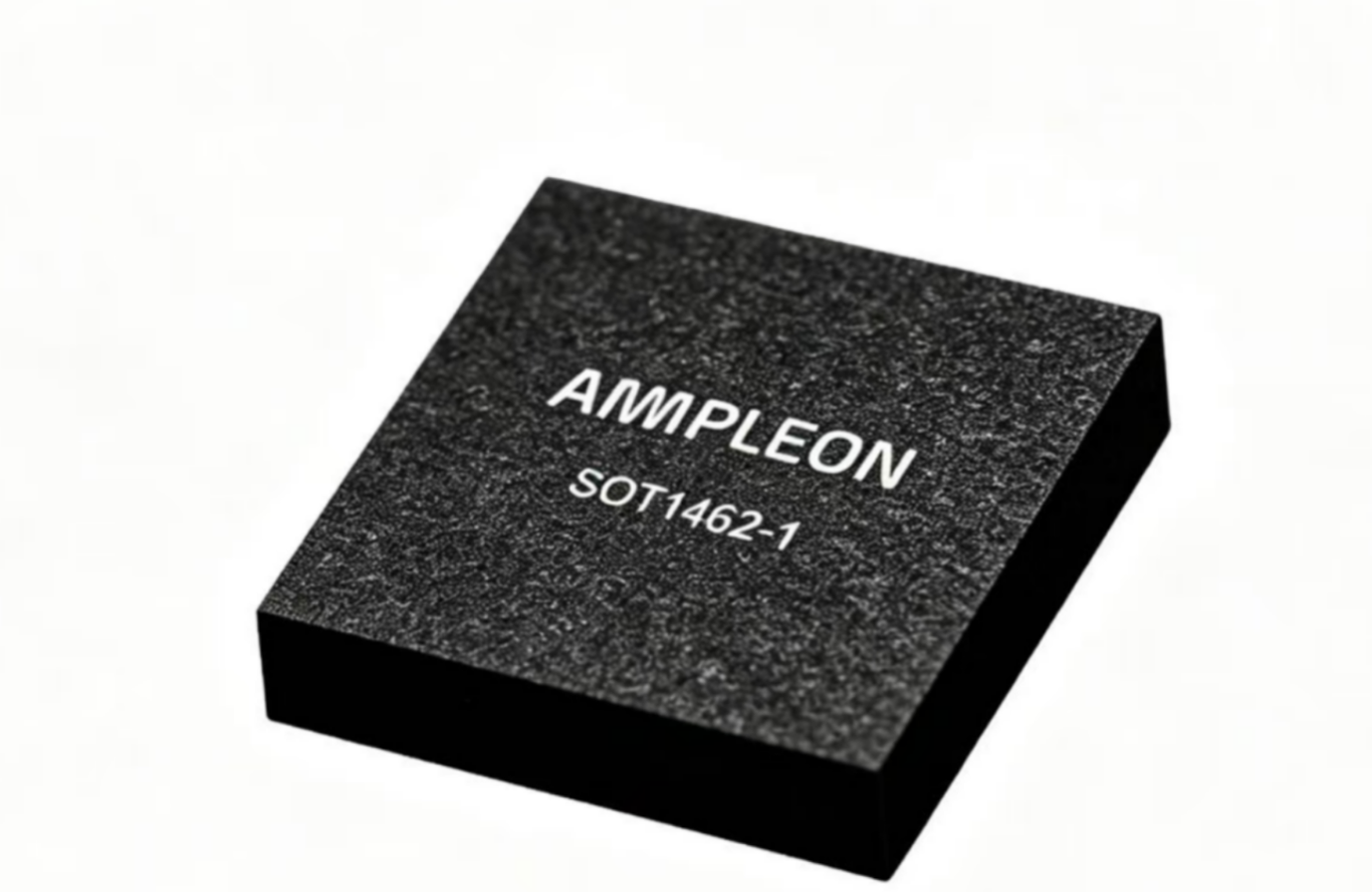

ຮຸ່ນ No: BLM9D2324-08AM BLM9D2324-08AMZ
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 2300 MHz to 2400 MHz (2.3–2.4 GHz), covering 5G NR n41 and other key bands |
| Peak Output Power (P3dB) | 8 W (Typical, 39.0 dBm), in Doherty Configuration |
| Typical Power Gain | 27.0 dB (Typical, 2-stage amplification) |
| Typical Drain Efficiency | 45%+ (Doherty Configuration, Optimized DPD Performance) |
| Supply Voltage (VDS) | 28 V (Standard), Maximum Rated Voltage 40 V |
| Quiescent Drain Current (IDq) | 120 mA (Typical) |
| Package Type | 20-pin LGA (7×7×0.98 mm), Surface Mount, with Exposed Pad (Enhanced Thermal Dissipation) |
| Special Features | Fully integrated Doherty architecture, built-in carrier/peaking devices, input splitter and output combiner, 50-ohm input/output impedance, no additional matching network required |
| Linearity Performance | Optimized for high Peak-to-Average Power Ratio (PAPR) 5G NR signals, excellent ACPR performance after DPD correction |
| Operating Temperature Range | -40°C to +125°C (Maximum Junction Temperature 175°C) |
