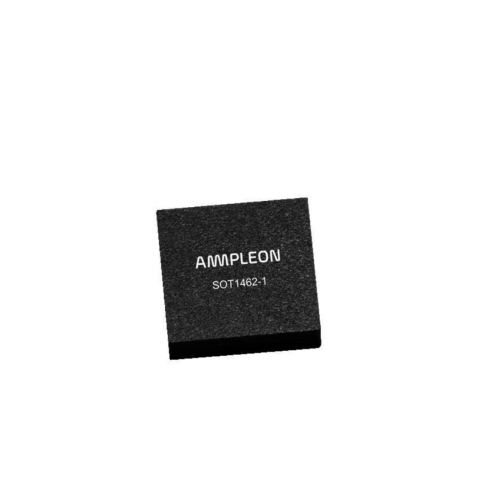

ຮຸ່ນ No: BLM10D2327-40ABZ BLM10D2327-40AB
ຍີ່ຫໍ້: AMPLEON
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
|---|---|
| Frequency Range | 2500 MHz ~ 2700 MHz (Precisely covers 5G NR n78 core band) |
| Peak Output Power | 40W Continuous Wave (CW), in Asymmetric Doherty Configuration (45.7dBm typical) |
| Typical Power Gain | 28.9 dB (Doherty operation mode, at 37.6dBm average output power) |
| Typical Drain Efficiency | 44.5% (at 8.7dB OBO, 1-carrier LTE 20MHz signal) |
| Supply Voltage | 28V nominal, Maximum Rated Voltage 65V |
| Quiescent Current | 45 mA (carrier path), independent biasing for peaking path (VGSq(peak)=VGSq(carrier)-0.4V) |

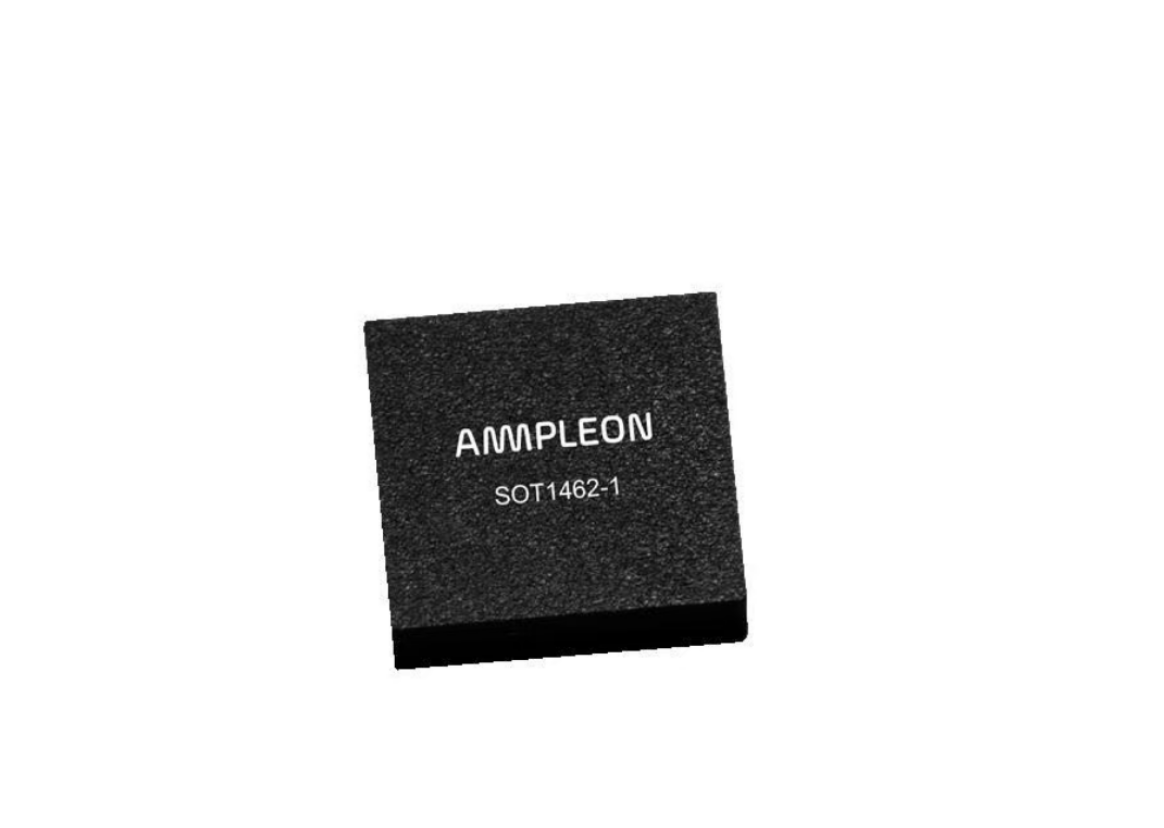

| Package Type | 20-PQFN (SOT1462-1), 8x8x2.1mm leadless thermal enhanced package with exposed thermal pad |
| Port Characteristics | Internally matched to 50Ω input, 20Ω output pre-match, simplifying external matching design |
| Architecture | Fully integrated asymmetric Doherty with built-in input splitter, output combiner, carrier and peaking amplifier paths |
| Operating Temperature | -40°C ~ +125°C (Maximum Junction Temperature 200°C) |
| Thermal Resistance | Junction-to-case thermal resistance as low as 3.6 K/W (at PL=5.75W) |
