DLC70L ເປັນ ຕົວເກັບປະຈຸເຊລາມິກ RF Microwave ພະລັງງານສູງ
DLC70LHigh-frequency power ceramic dielectric capacitor
ປະກອບດ້ວຍປັດໄຈ Q ສູງ, ESR ຕ່ໍາແລະ ESL, ສຽງຕ່ໍາແລະຄວາມຫນ້າເຊື່ອຖືສູງ, ຜະລິດຕະພັນນີ້ສາມາດທົນທານຕໍ່ກະແສໄຟຟ້າ RF ສູງ, ແຮງດັນແລະພະລັງງານ. ມັນຖືກນໍາໃຊ້ຢ່າງກວ້າງຂວາງໃນການຜະລິດ semiconductor, ຄວາມຮ້ອນ induction, ລະບົບ plasma ປະສົມປະສານ inductively, ເຄື່ອງມືວິທະຍາສາດ, ອຸປະກອນການແພດ, ການສົ່ງໄຟຟ້າ RF ທີ່ມີພະລັງງານສູງແລະວົງຈອນການຈັບຄູ່.

ຕາຕະລາງຄວາມອາດສາມາດ DLC70L

Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage Capacitance (pF) Code Tolerance Rated Voltage
200 201 G, J. 10KV Code: 103 1800 182 G, J. 10KV Code: 103 12000 123 J. 3000V Code: 302
220 221 2200 222 15000 153
270 271 2700 272 22000 223
300 301 3300 332 G, J. 5KV Code: 502 33000 333
330 331 4700 472 47000 473
390 391 5100 512 56000 563
470 471 5600 562 68000 683 1000V Code: 102
560 561 6800 682 82000 823
680 681 7500 752 100000 104
820 821 8200 822 120000 124
1000 102 10000 103
1200 122
1500 152

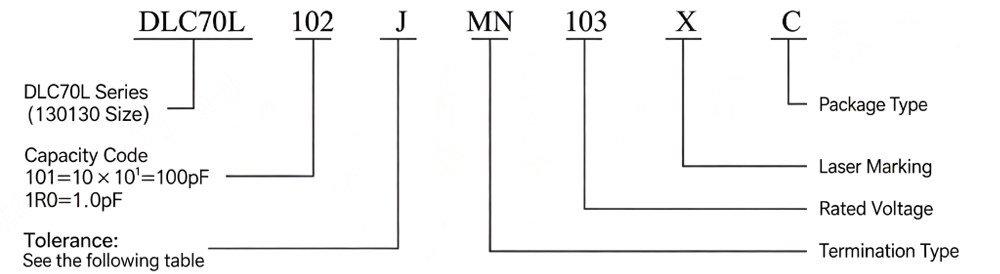

ຈໍານວນອົງປະກອບ
C70L

Code G J
Tolerance ±2% ±5%

ປະເພດ Pin DLC70L ແລະຂະຫນາດ
ຫົວໜ່ວຍ: ນິ້ວ (ມິນລິແມັດ)
Termination Code Type / Outline Capacitor Dimensions Lead Dimensions Terminal Electrode & Lead Material
  Length (Lc) Width (Wc) Thickness (Tc) Termination Size (B) Length (LL) Width (WL) Thickness (TL) Copper-plated, tin-plated
P Chip (Non-magnetic) 1.350 ± .050 (34.29 ± 1.27) 1.350 ± .050 (34.29 ± 1.27) .197 (5.00) max .039 ~ .071 (1.00 ~ 1.80)
MN Microstrip (Non-magnetic)   .748 (19.00) min 1.299 ± .020 (33.00 ± 0.50) .012 ± .001 (0.30 ± 0.025) Silver-plated copper strip
AN Axial leaded (Non-magnetic)
FN Radial leaded (Non-magnetic) .669 (17.00) min .157 ± .008 (4.00 ± 0.20) .012 ± .001 (0.30 ± 0.025)

ຄວາມອາດສາມາດດ້ານໂທລະຄົມມະນາຄົມ
Item Specification
Quality Factor (Q value) - Capacitance ≤ 1000 pF: Q ≥ 2000, test frequency 1 MHz.

- Capacitance > 1000 pF: Q ≥ 2000, test frequency 1 kHz.
Insulation Resistance (IR) - ≥ 10⁵ MΩ at 25°C, tested at 500 VDC.

- ≥ 10⁴ MΩ at 125°C, tested at 500 VDC.
Rated Voltage (WVDC) See Capacitance Table.
Dielectric Withstanding Voltage (DWV) - 500V < Rated Voltage ≤ 1250V: Apply 150% of rated voltage for 5 seconds.

- Rated Voltage > 1250V: Apply 120% of rated voltage for 5 seconds.
Operating Temperature Range -55°C ~ +125°C

(Contact Dalicap Technology Co., Ltd. for higher temperature requirements.)
Temperature Coefficient (TC) 0 ± 30 ppm/°C
Capacitance Drift ±0.2% or ±0.05 pF, whichever is greater.
Piezoelectric Effect None
Termination Type See Lead Type and Dimension Table.

ການທົດສອບສິ່ງແວດລ້ອມ
Item Specification Method
Resistance to Soldering Heat Appearance: No mechanical damage.

Capacitance change: -1.0% ~ +2.0% or 0.5 pF, whichever is greater.

Q value: > 1000.

IR: Not less than the initial requirement value.
Preheat at 150°C ~ 180°C for 1 minute, immerse in solder at 260 ± 5°C for 10 ± 1 seconds, cool for 24 ± 2 hours, then test.
Thermal Shock DWV: Meet initial requirements.

IR: ≥ 30% of the initial requirement value.

Capacitance change: ≤ 0.5% or 0.5 pF, whichever is greater.
Test per MIL-STD-202, Method 107, Condition A.

Expose at extreme temperatures for 15 minutes; transition from minimum to maximum operating temperature in ≤ 5 minutes, repeat for 5 cycles.
Moisture Resistance (Same as thermal shock specs) Test per MIL-STD-202, Method 106.
Steady-State Humidity Heat IR: Meet initial requirements.

Capacitance change: ≤ 0.3% or 0.3 pF, whichever is greater.
Test per MIL-STD-202, Method 103, Condition A.

Apply 1.5 VDC at 85°C, 85% RH for 240 continuous hours.
Life (Endurance) IR: ≥ 30% of the initial requirement value.

Capacitance change: ≤ 2.0% or 0.5 pF, whichever is greater.
Test per MIL-STD-202, Method 108 at extreme temperature for 2000 hours:

- 500 VDC < Rated Voltage ≤ 1250 VDC: Apply 1.2× rated voltage.

- Rated Voltage > 1250 VDC: Apply rated voltage.
Terminal Strength Microstrip: > 20N Test per MIL-STD-202, Method 211.

ເສັ້ນໂຄ້ງປະສິດທິພາບ DLC7OL

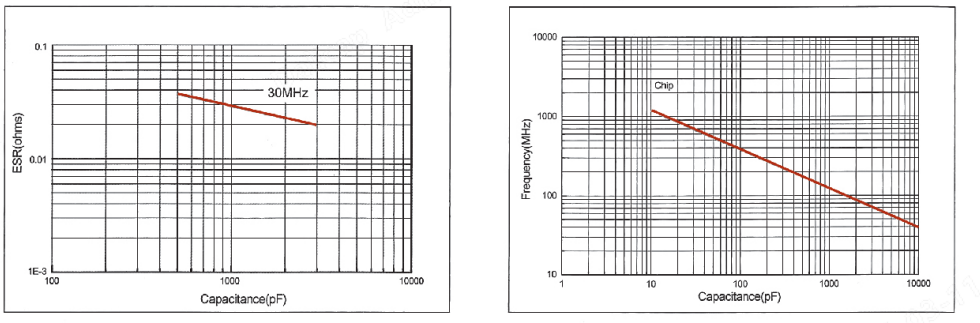

ESR ແລະເສັ້ນໂຄ້ງ capacitance (ວັດແທກຢູ່ທີ່ 30 MHz) ຄວາມຖີ່ Resonant ແລະເສັ້ນໂຄ້ງ capacitance
70L1

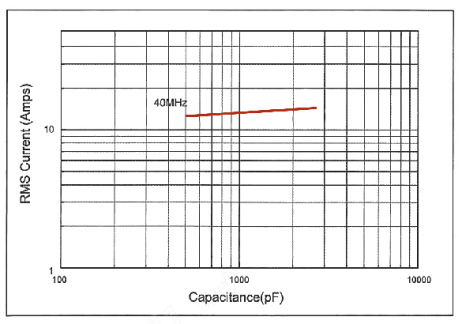

ເສັ້ນໂຄ້ງປັດຈຸບັນ ແລະ ຄວາມຖີ່ໃຫ້ຄະແນນ
70L2
