Shenzhen Tongxinke Electronic Technology Co., Ltd.

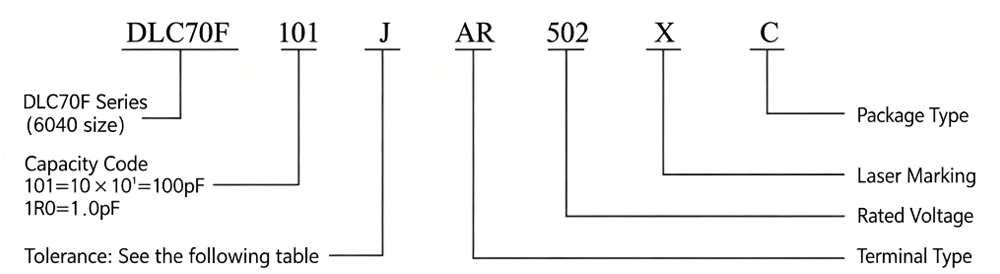

ຮຸ່ນ No: DLC70F(6040)
The file is encrypted. Please fill in the following information to continue accessing it
| Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage | Capacitance (pF) | Code | Tolerance | Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.0 | 1R0 | B, C, D. | 5000V Code: 502 / Extended Voltage 8000V Code: 802 | 22 | 220 | F, G, J. | 5000V Code: 502 / Extended Voltage 8000V Code: 802 | 390 | 391 | F, G, J. | 3000V Code: 302 / Extended Voltage 5000V Code: 502 |
| 1.2 | 1R2 | 27 | 270 | 470 | 471 | ||||||
| 1.5 | 1R5 | 33 | 330 | 560 | 561 | ||||||
| 1.8 | 1R8 | 39 | 390 | 680 | 681 | ||||||
| 2.2 | 2R2 | 47 | 470 | 820 | 821 | 2000V Code: 202 / Extended Voltage 3000V Code: 302 | |||||
| 2.7 | 2R7 | 56 | 560 | 1000 | 102 | 1000V Code: 102 / Extended Voltage 2000V Code: 202 | |||||
| 3.3 | 3R3 | 68 | 680 | 1200 | 122 | ||||||
| 3.9 | 3R9 | 82 | 820 | 1500 | 152 | ||||||
| 4.7 | 4R7 | 100 | 101 | 1800 | 182 | ||||||
| 5.6 | 5R6 | 120 | 121 | 3000V Code: 302 / Extended Voltage 5000V Code: 502 | 2200 | 222 | |||||
| 6.8 | 6R8 | 150 | 151 | 2700 | 272 | ||||||
| 8.2 | 8R2 | 180 | 181 | 3300 | 332 | ||||||
| 10 | 100 | F, G, J. | 220 | 221 | 4700 | 472 | |||||
| 12 | 120 | 270 | 271 | 5100 | 512 | ||||||
| 15 | 150 | 330 | 331 | 5600 | 562 | ||||||
| 18 | 180 | 6800 | 682 |
| Termination Code | Type / Outline | Capacitor Dimensions | Lead Dimensions | Terminal Electrode & Lead Material | |||||
|---|---|---|---|---|---|---|---|---|---|
| Length (Lc) | Width (Wc) | Thickness (Tc) | Termination Size (B) | Length (LL) | Width (WL) | Thickness (TL) | Nickel-plated, tin-plated | ||
| W | Chip | .614 +.015 / -.010 (15.60 +0.38 / -0.25) | .433 ± .010 (11.00 ± 0.25) | .197 (5.00) max | .024 ~ .059 (0.60 ~ 1.50) | — | — | — | |
| L | — | — | — | Nickel-plated, 10Pb90Sn plated | |||||
| MS | Microstrip | .748 (19.00) min | .350 ± .010 (8.89 ± 0.25) | .008 ± .001 (0.20 ± 0.025) | Silver-plated copper strip or silver-plated copper wire | ||||
| AR | Axial leaded | ||||||||
| RW | Radial wire | .748 (19.00) min | Lead diameter .030 ± .004 (0.762 ± 0.10) | ||||||
| AW | Axial wire | .906 (23.00) min | |||||||
| Item | Specification |
|---|---|
| Quality Factor (Q value) | - Capacitance ≤ 1000 pF: Q ≥ 2000, test frequency 1 MHz.
|
| Insulation Resistance (IR) | - ≥ 10⁵ MΩ at 25°C, tested at 500 VDC.
|
| Rated Voltage (WVDC) | See Capacitance Table. |
| Dielectric Withstanding Voltage (DWV) | - Rated Voltage ≤ 1250 V: Apply 150% of rated voltage for 5 seconds.
|
| Operating Temperature Range | -55°C ~ +125°C
|
| Temperature Coefficient (TC) | 0 ± 30 ppm/°C |
| Capacitance Drift | ±0.2% or ±0.05 pF, whichever is greater. |
| Piezoelectric Effect | None |
| Termination Type | See Lead Type and Dimension Table. |
